Haul Out and Boat Projects in Subic Bay Philippines

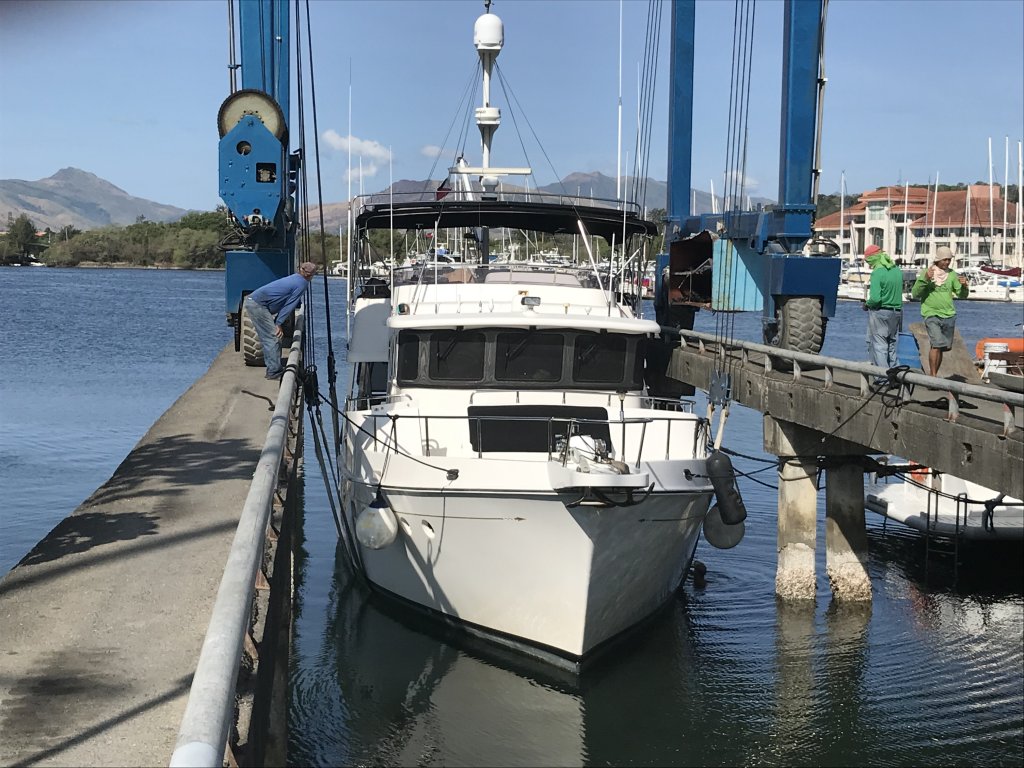

Hauling out Mystic at Watercraft Boatyard in Subic Bay Philippines
A very sunny and hot day......soon to be covered in dust from high winds and a quarry near by

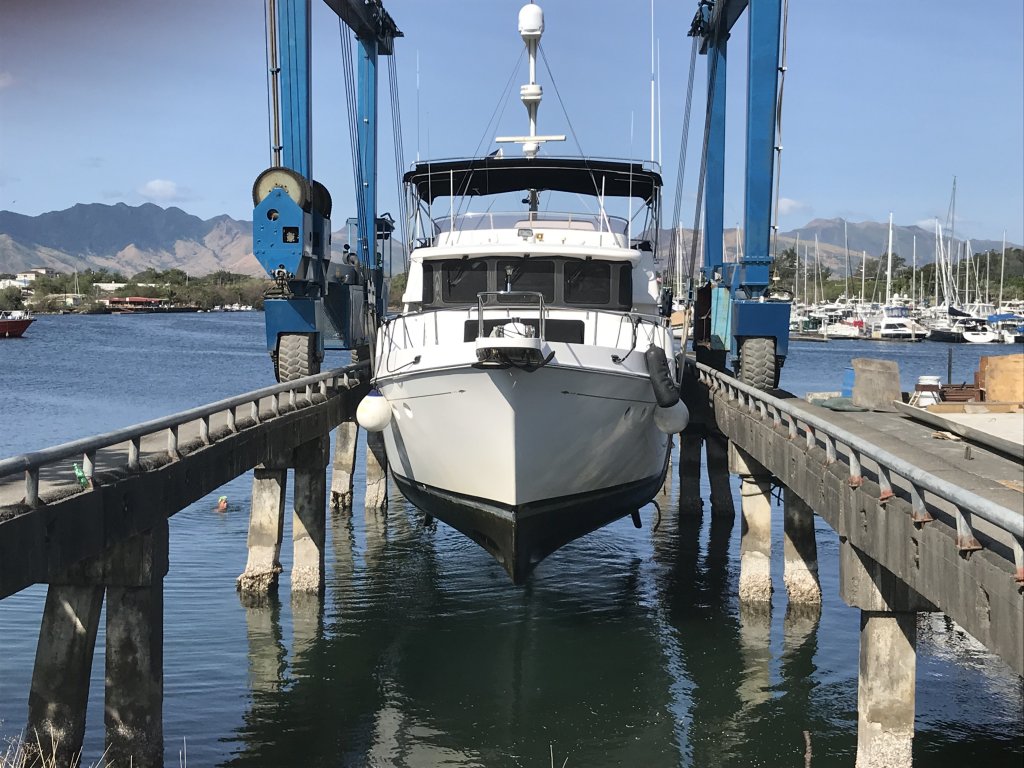

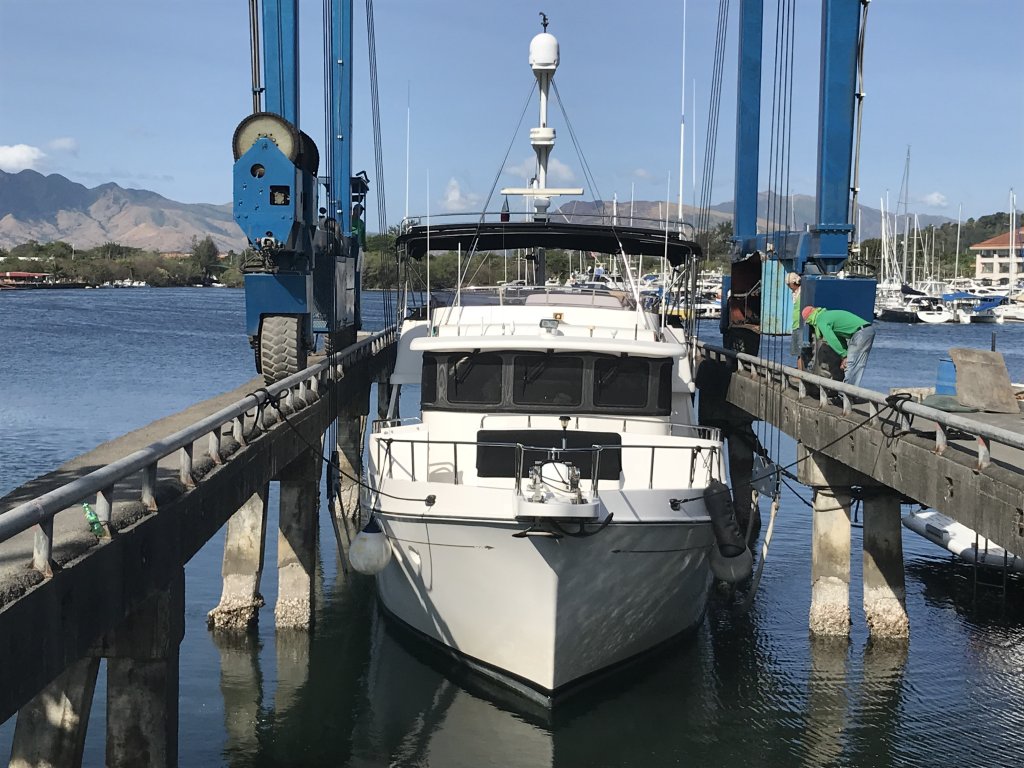

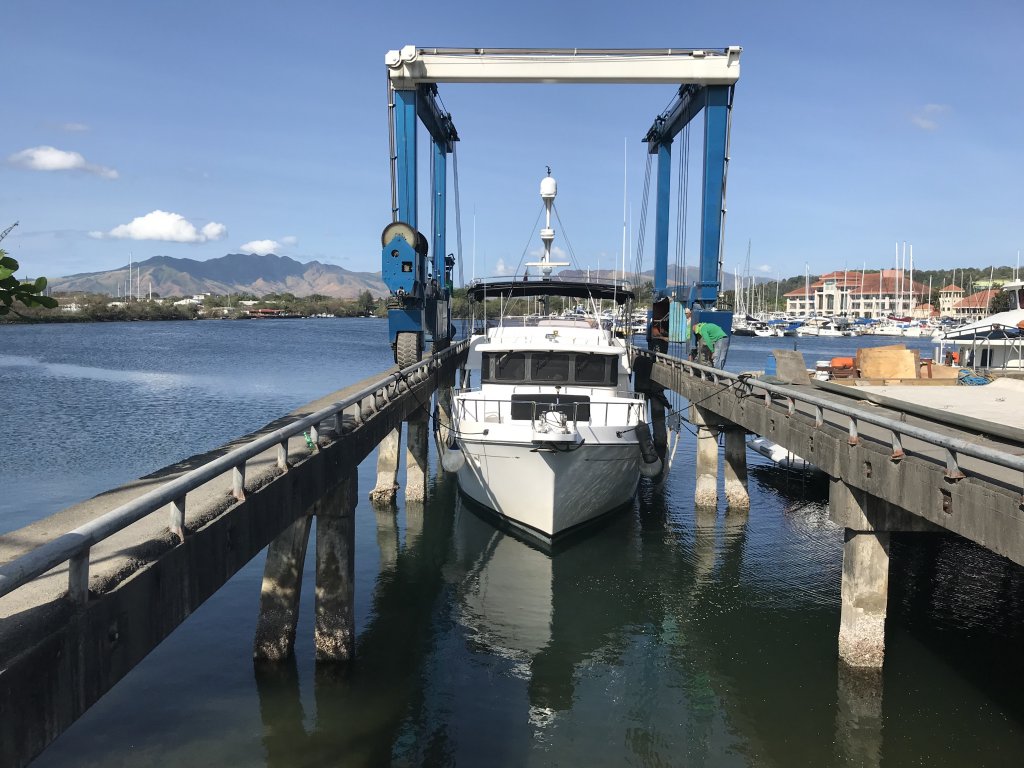

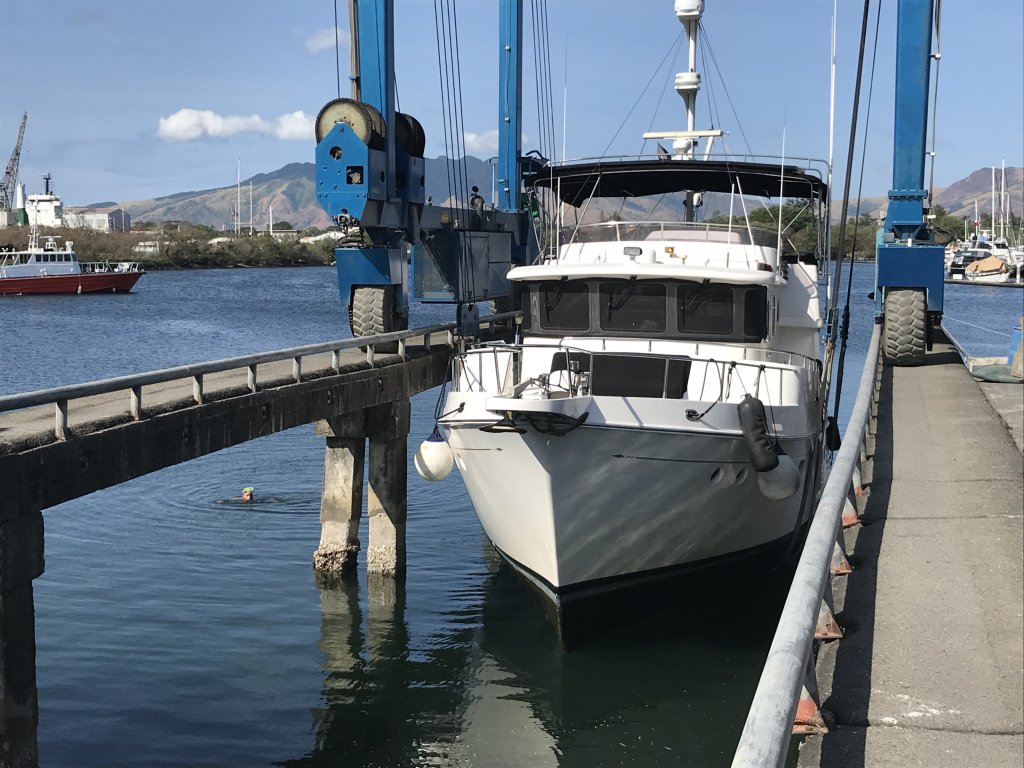

The haul out lane is 19'...we are 17' wide....not much clearance...thanks to excellent line handlers and thrusters we had no scrapes:)))
IMG_8104

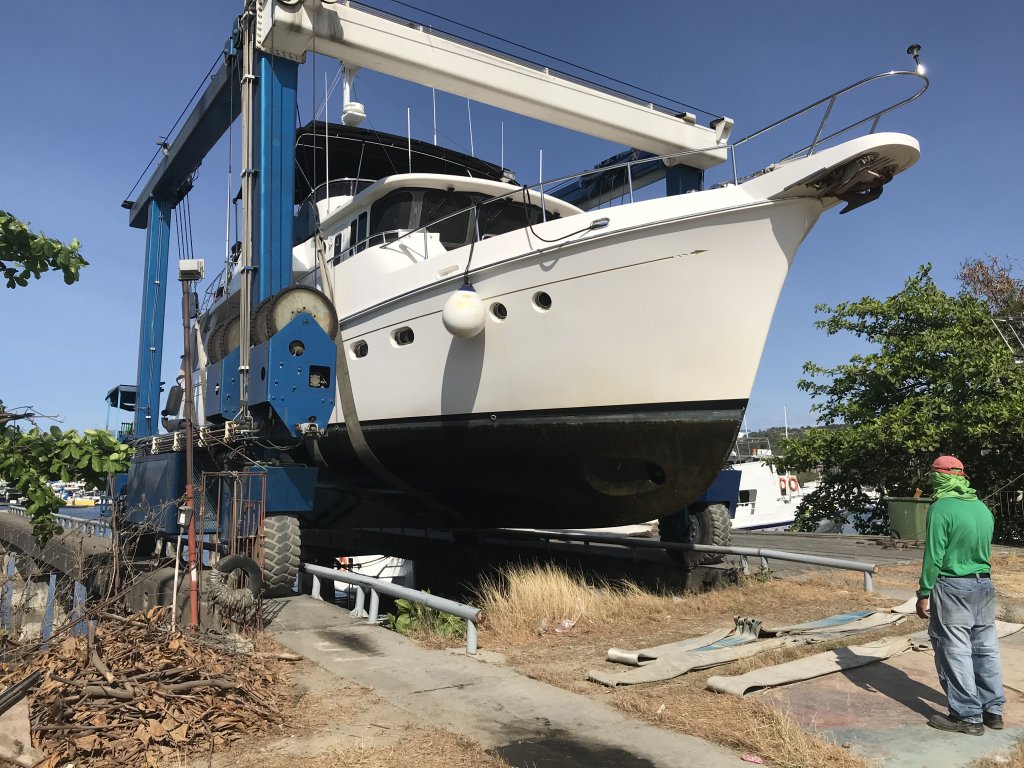

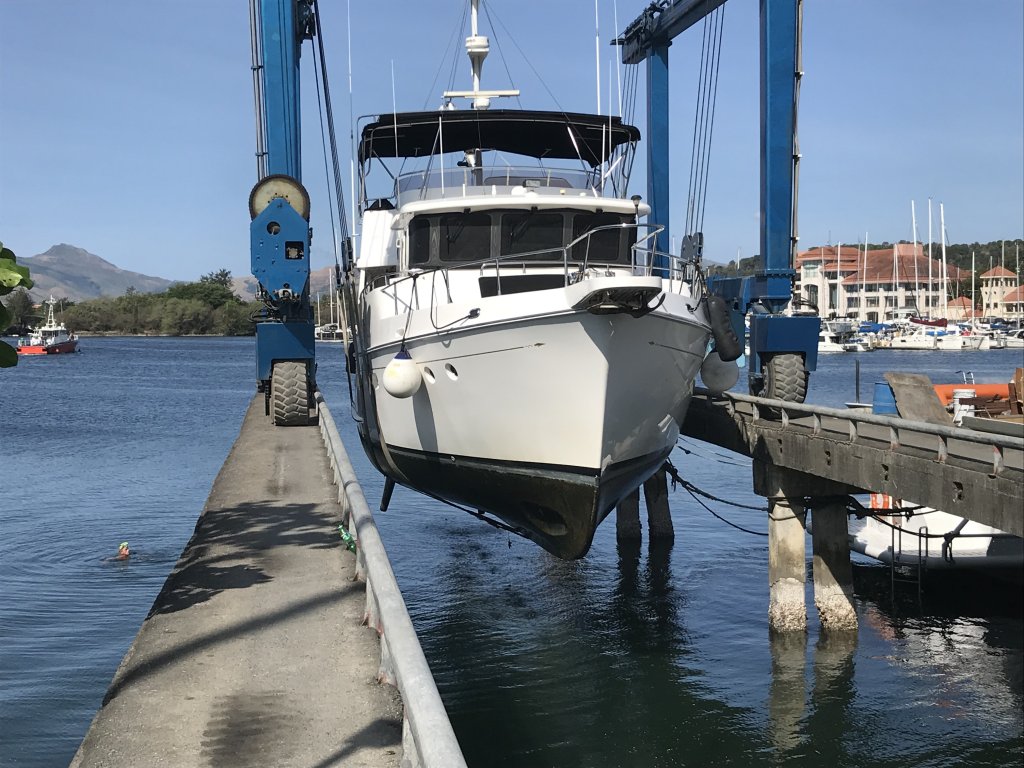

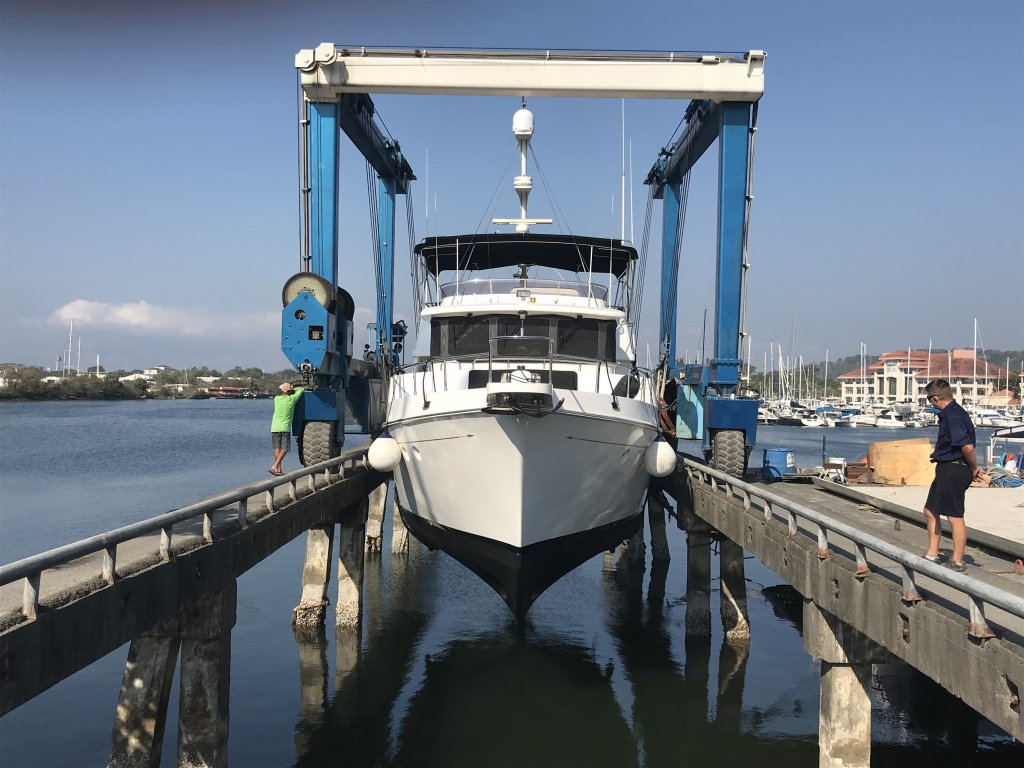

It's always a bit stressful when the boat is lifted....will the lift hold????
IMG_8109

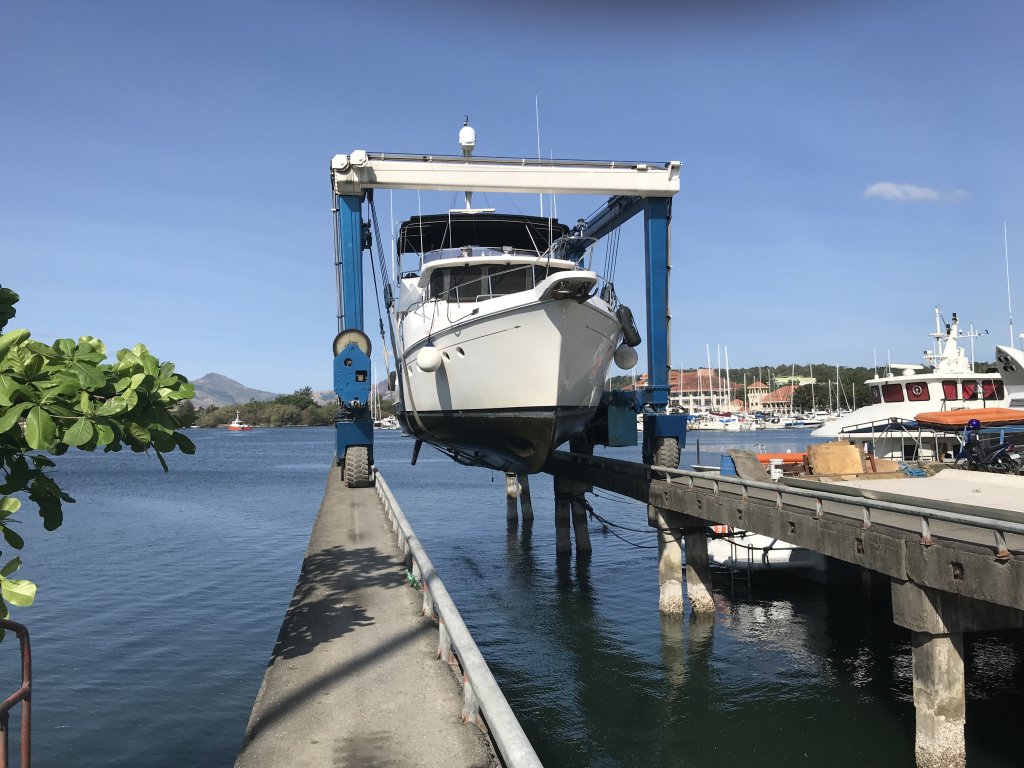

IMG_8111

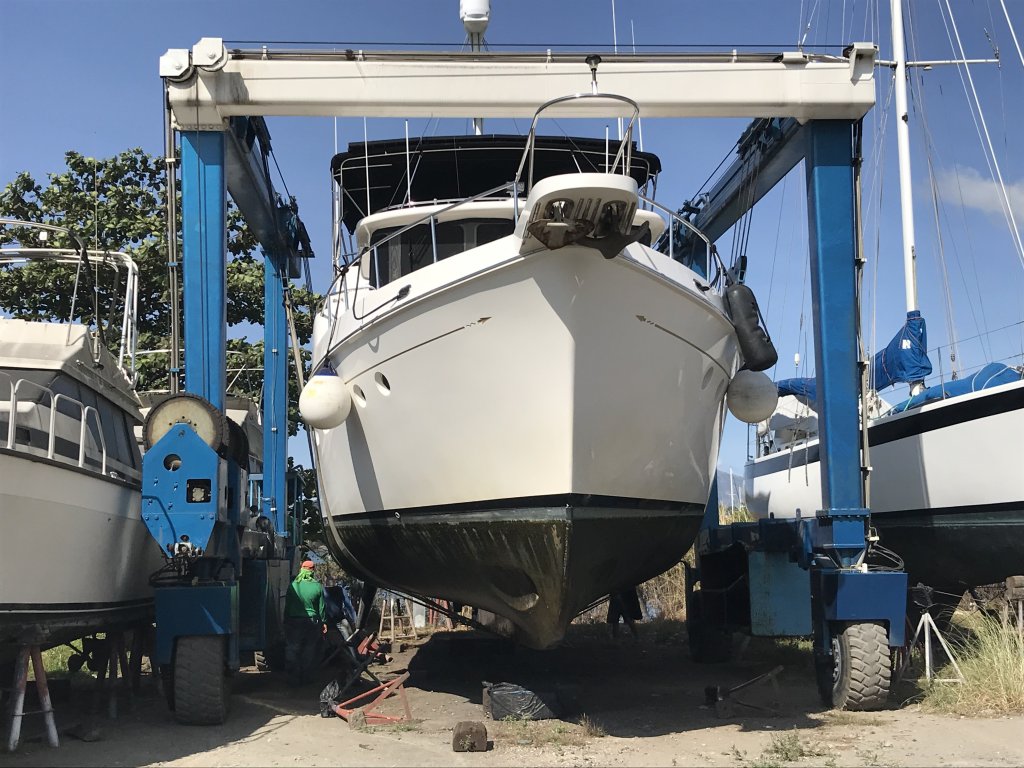

Bottom paint looking good!!

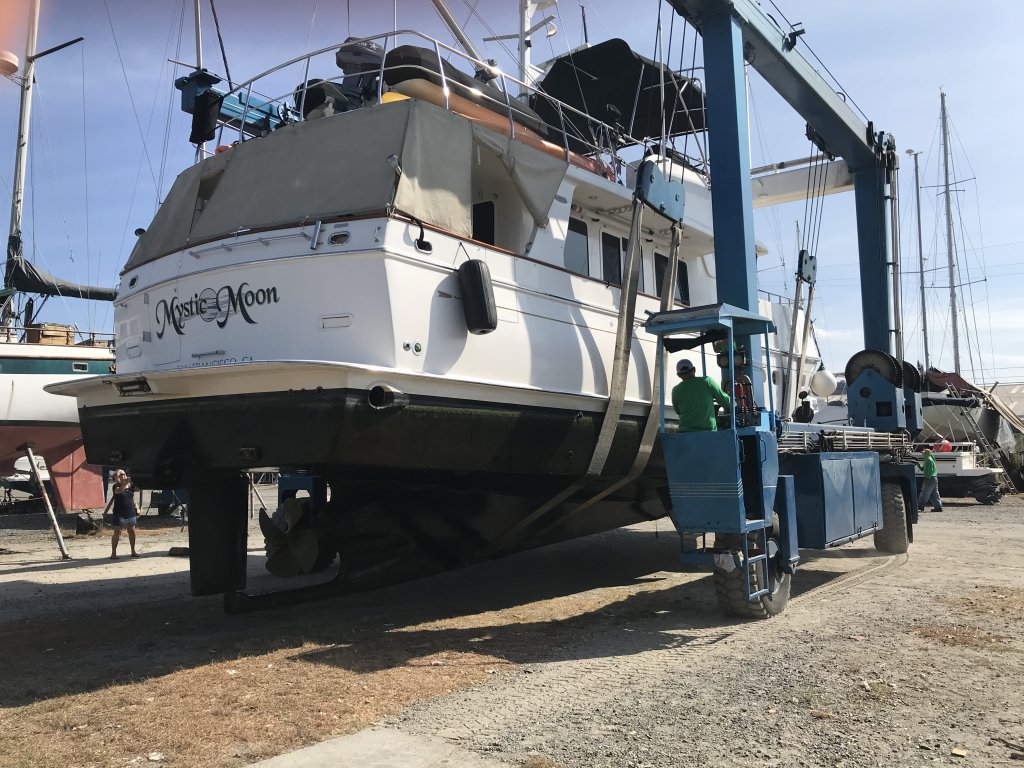

IMG_8115
IMG_8116

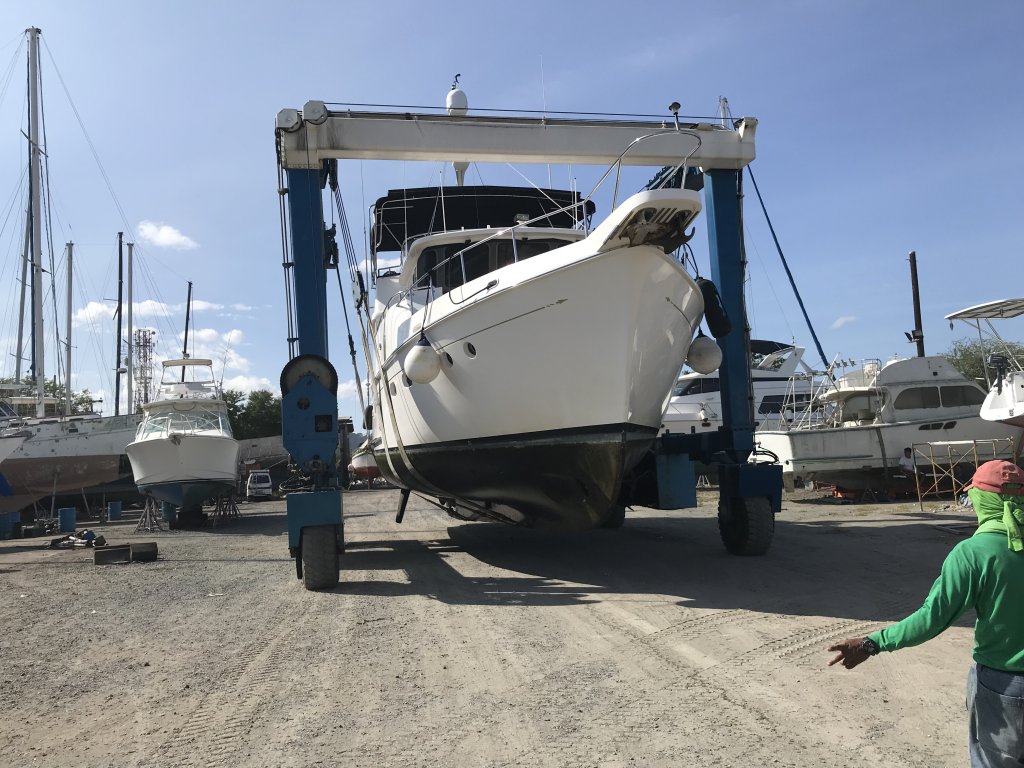

Backed into our spot.....note all the weeds, dirt and trash.....we both got bit many times....ugh!!!
Francis and John emptying the port tank....just love our fuel pump...15 gpm baby!!!!

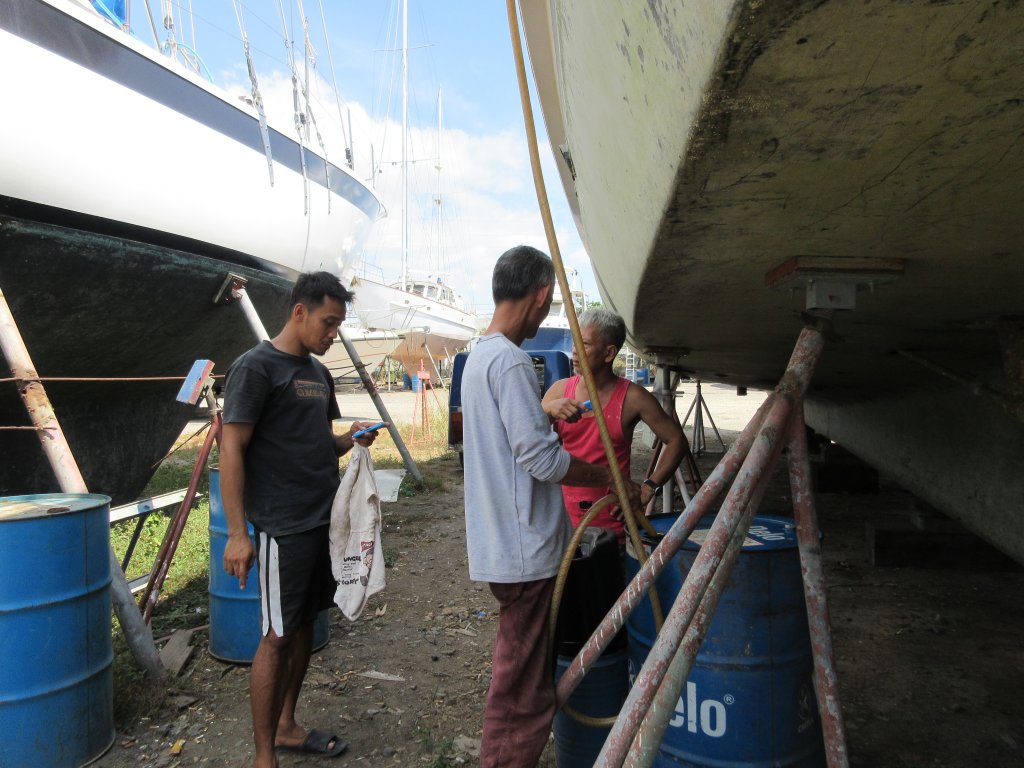

The guys filling drums!!
We had a cock fighting rooster next to us.....crowed all day...can't say I blamed him....hot and dusty!!

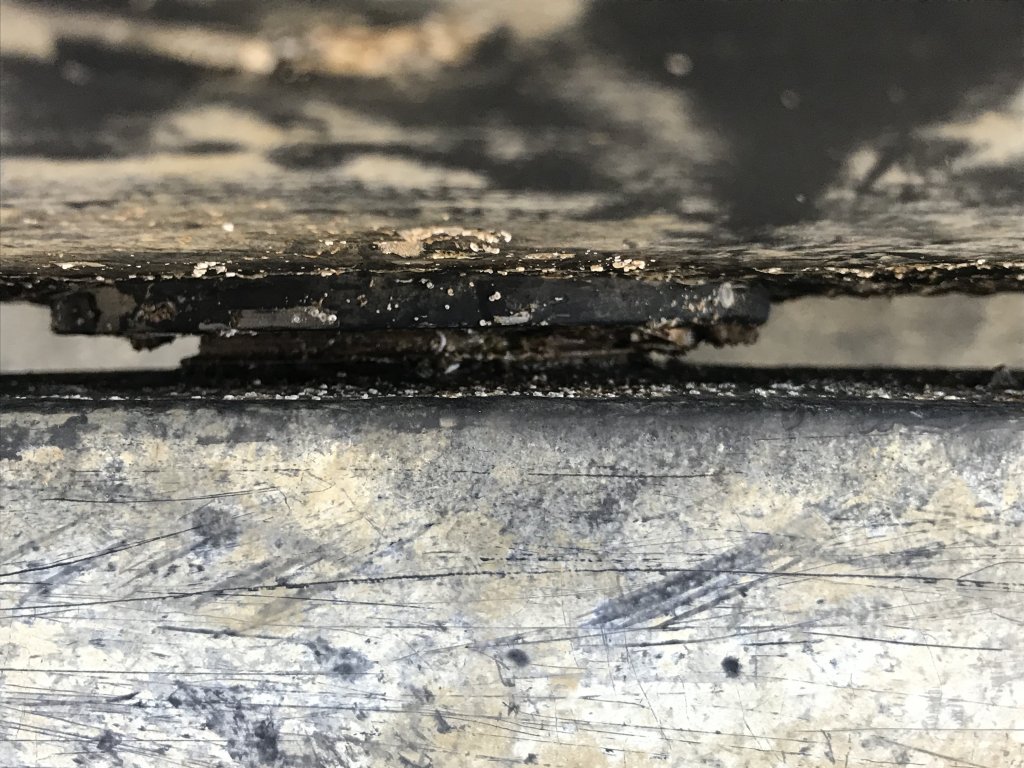

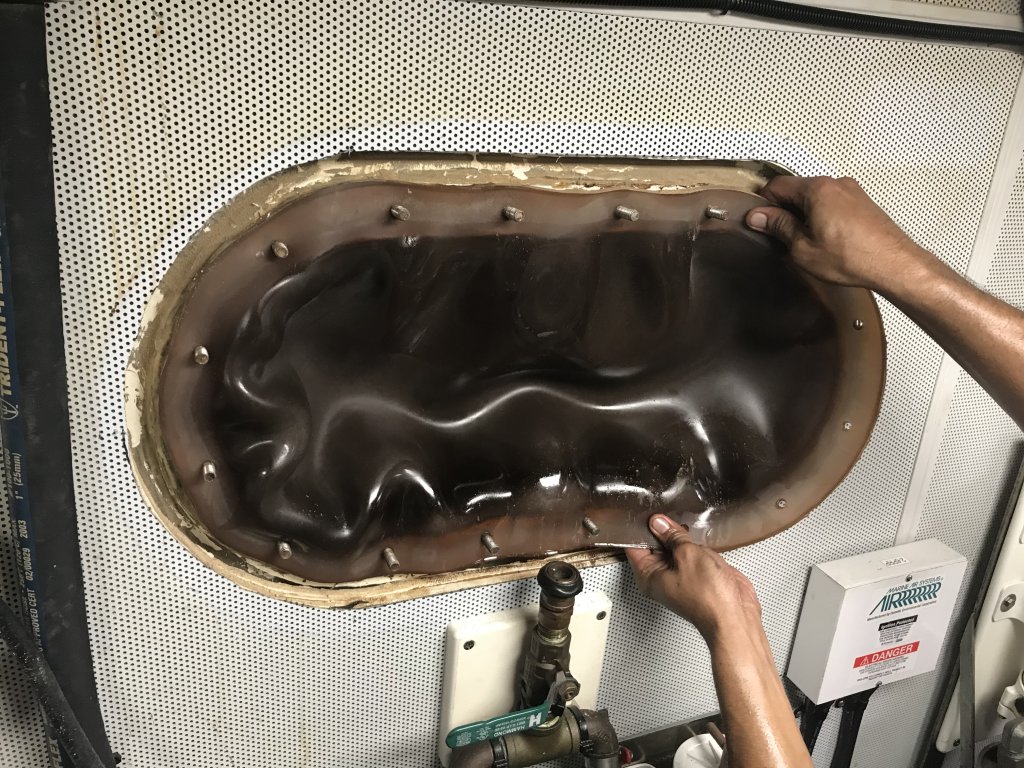

Port tank gasket.....some kind of silicon....ok shape, a little wobbly

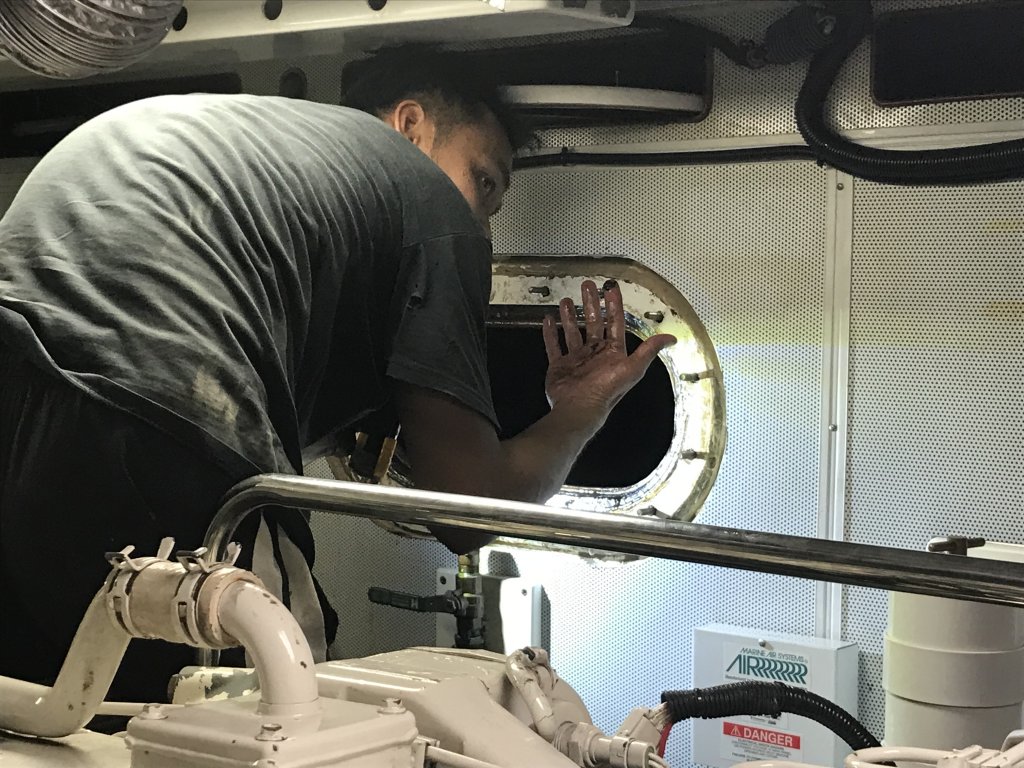

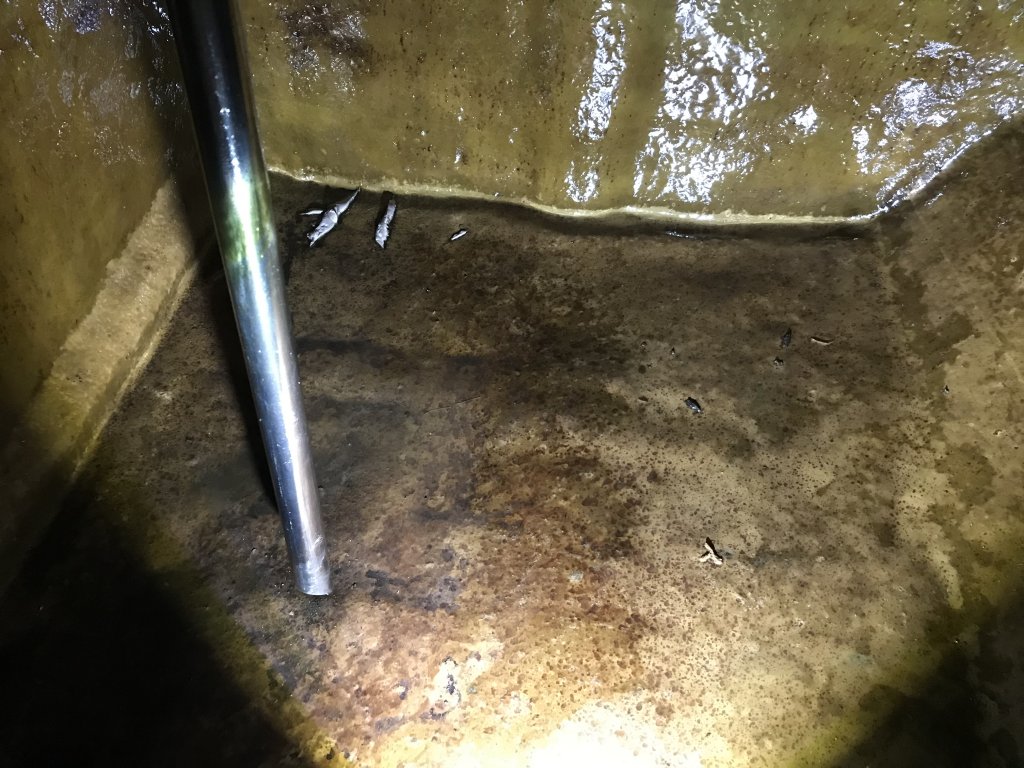

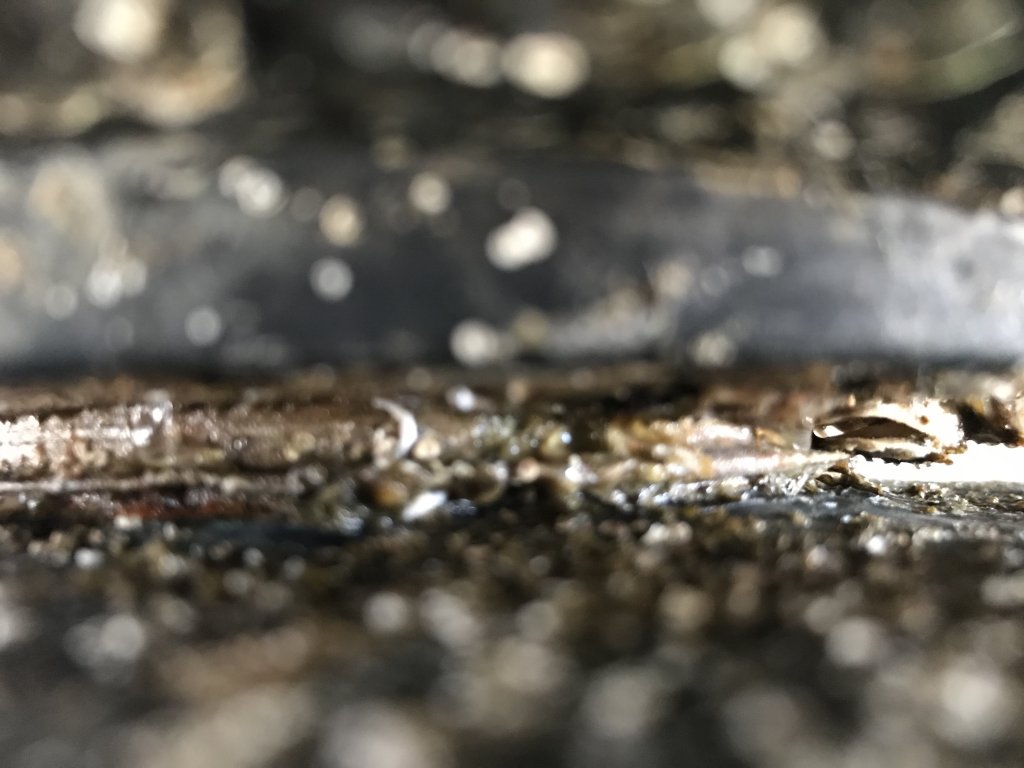

Middle compartment port fuel tank....a little dirty
Algae residue on Francis' hand

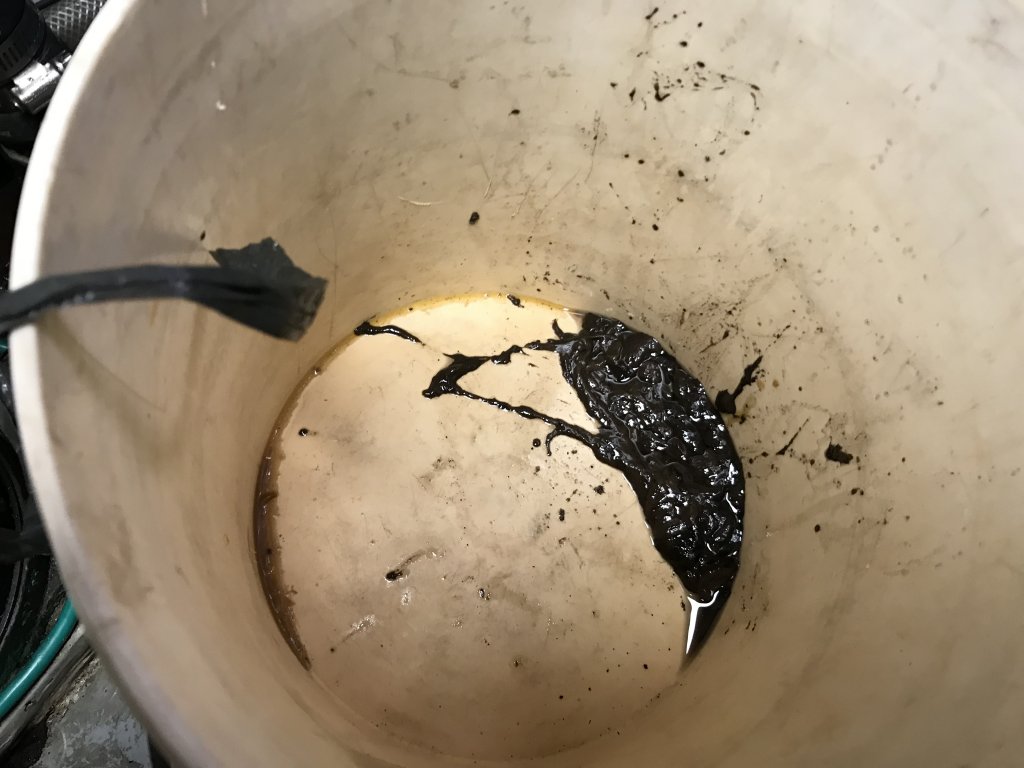

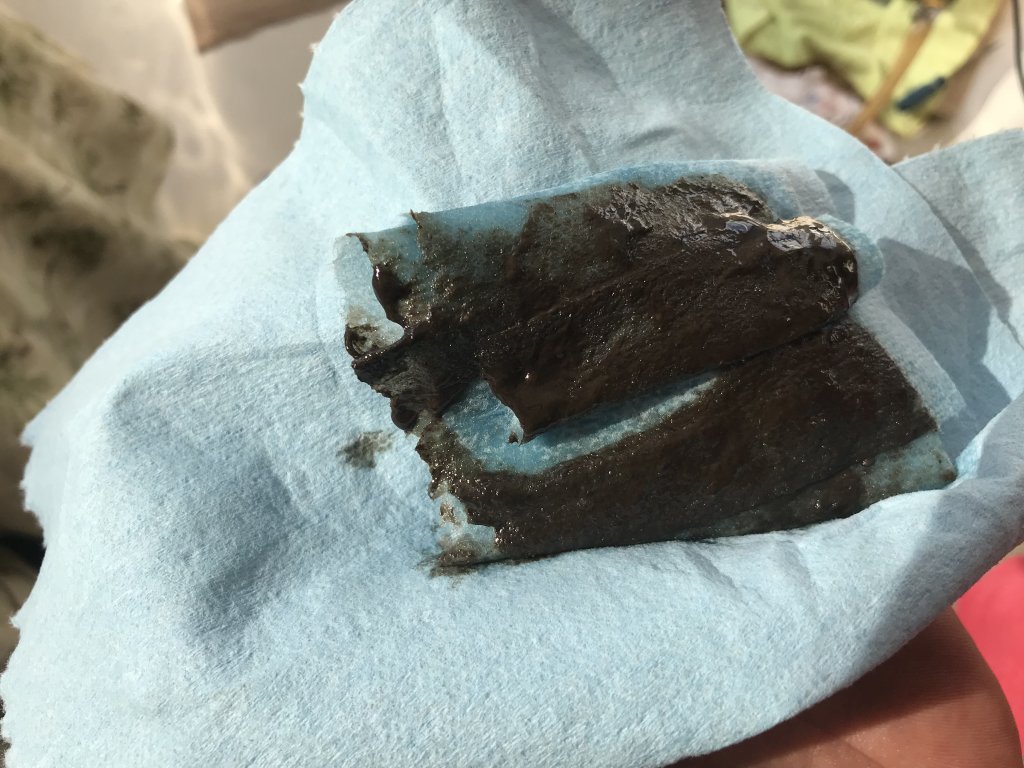

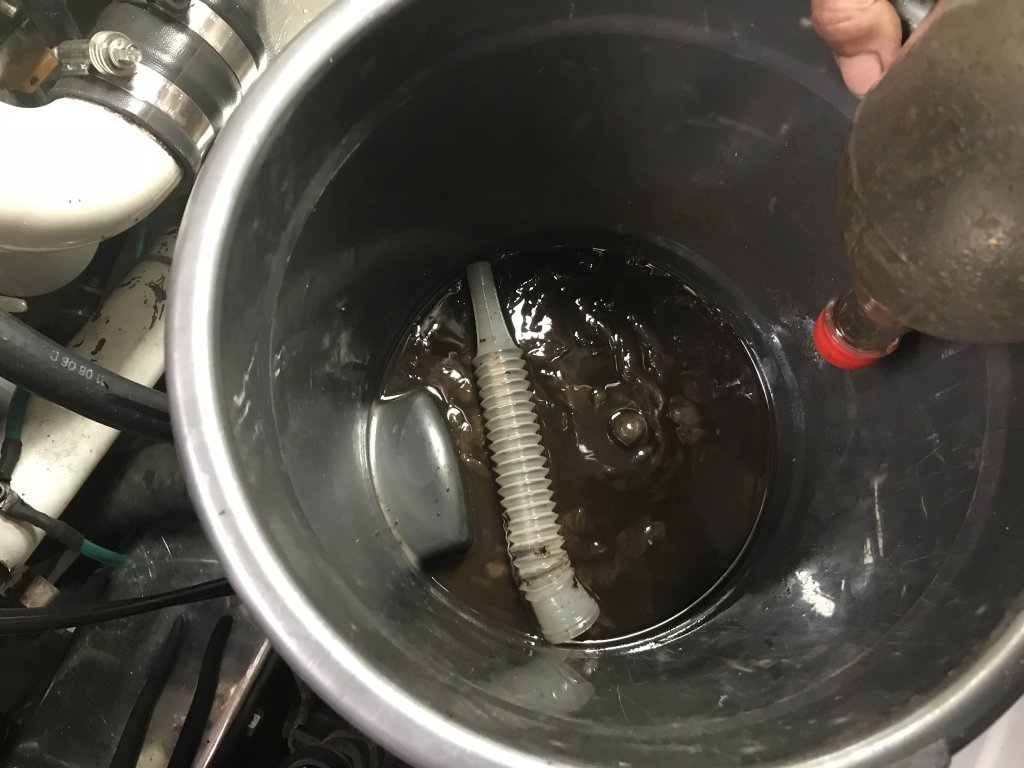

Algae crap from bottom of tank.....we took out 32oz from the port tank

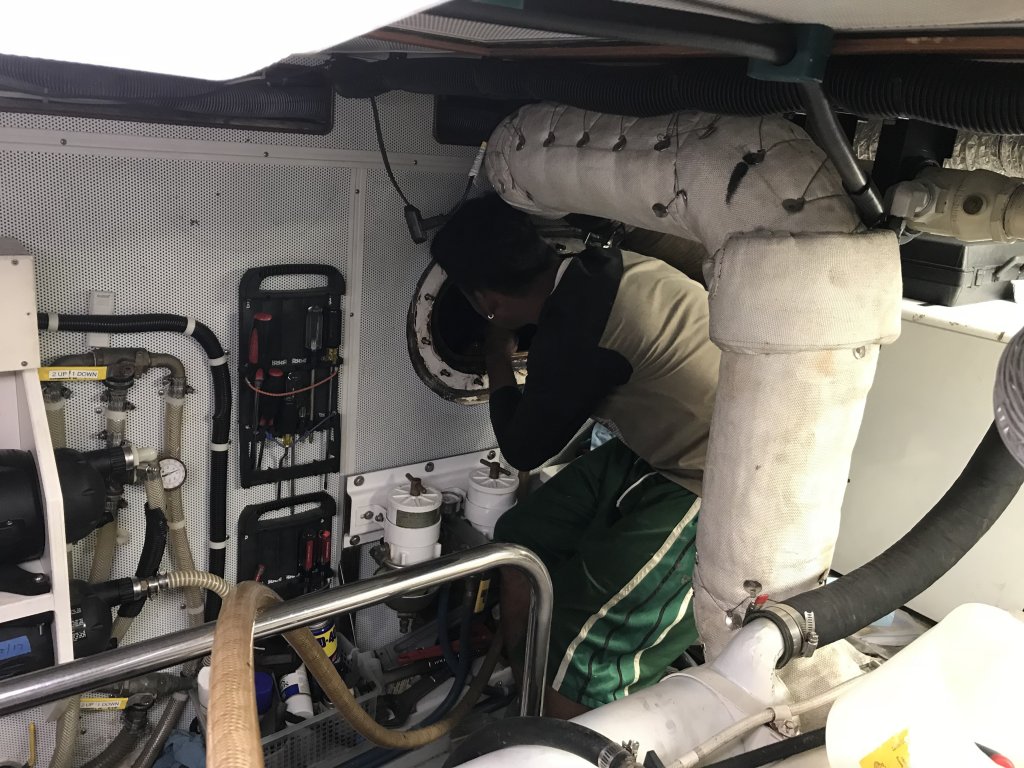

Small Kevin in the port tank.....we ventilated the tank overnight but it still had some diesel fumes!

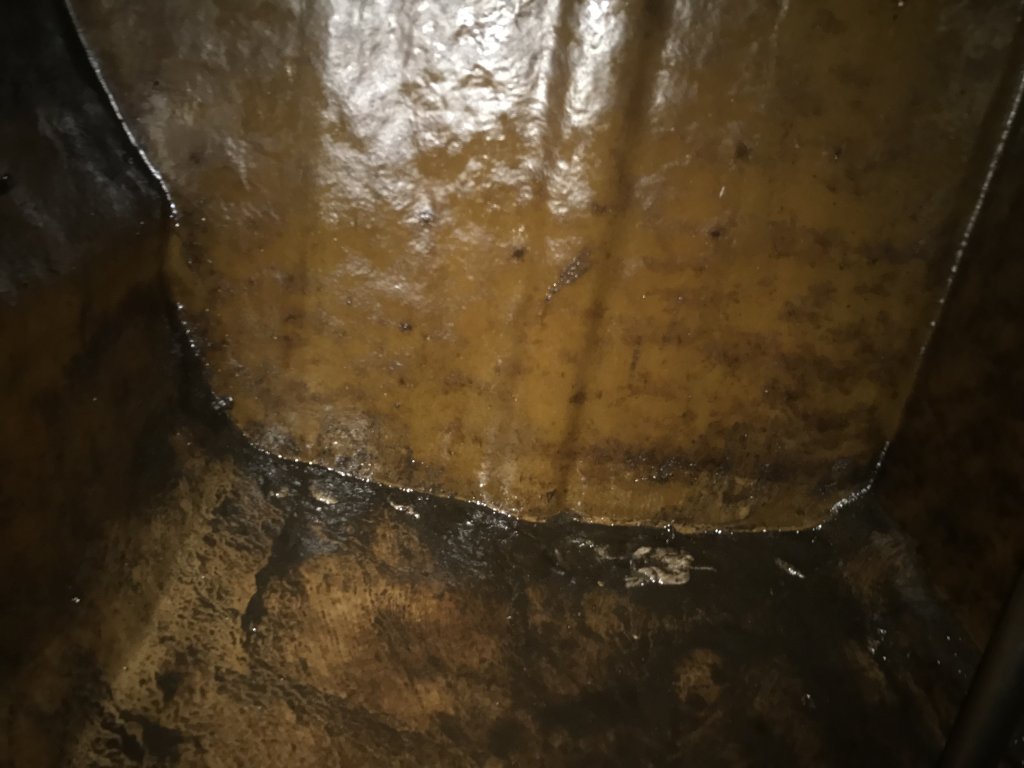

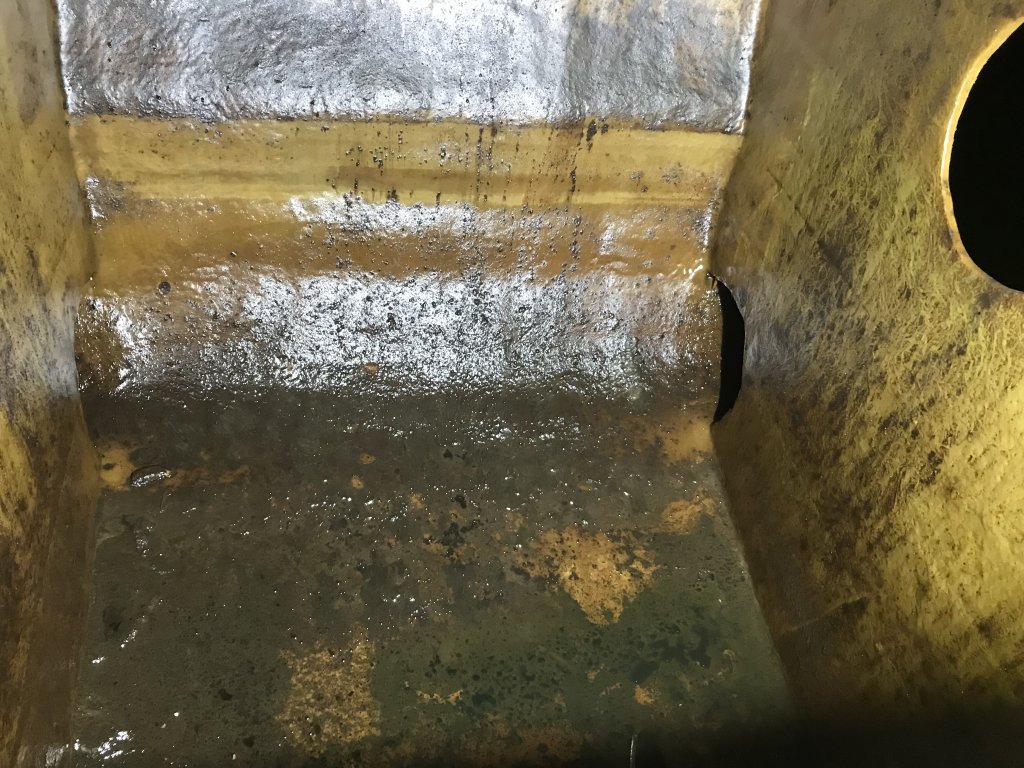

Aft compartment....dirty

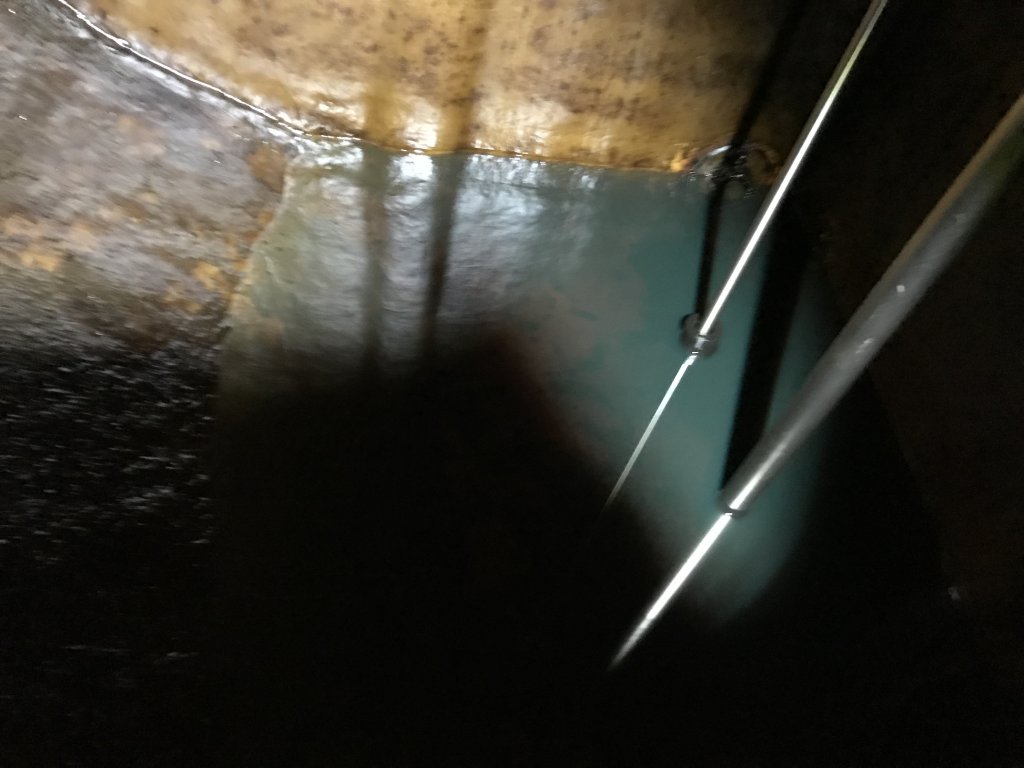

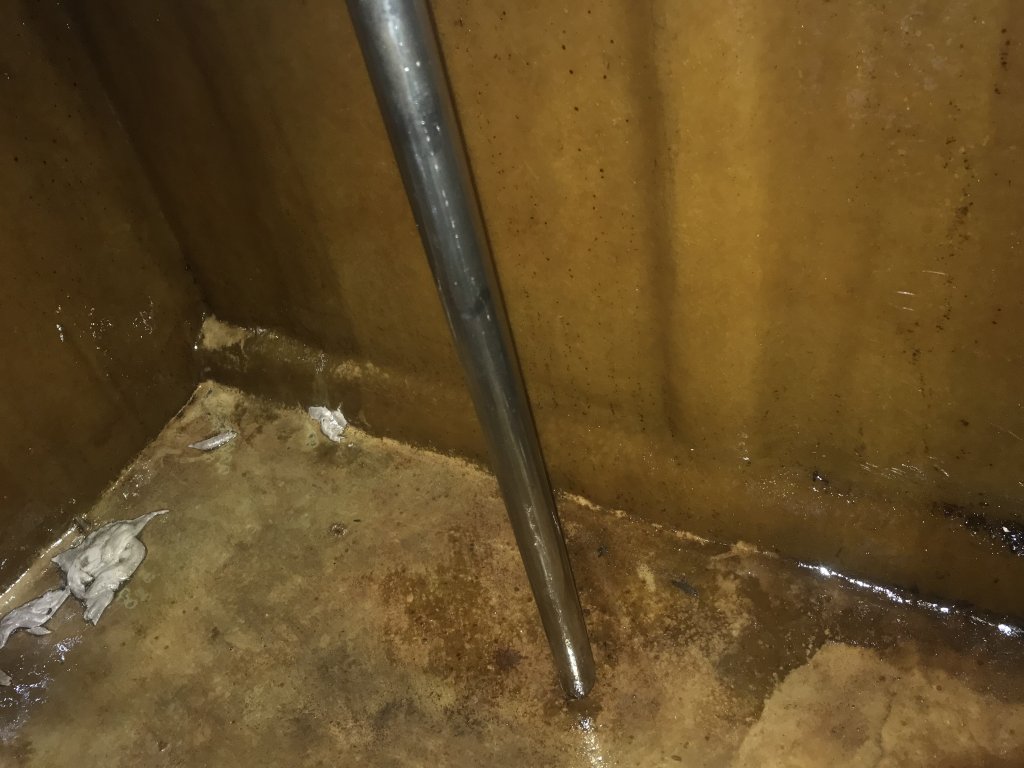

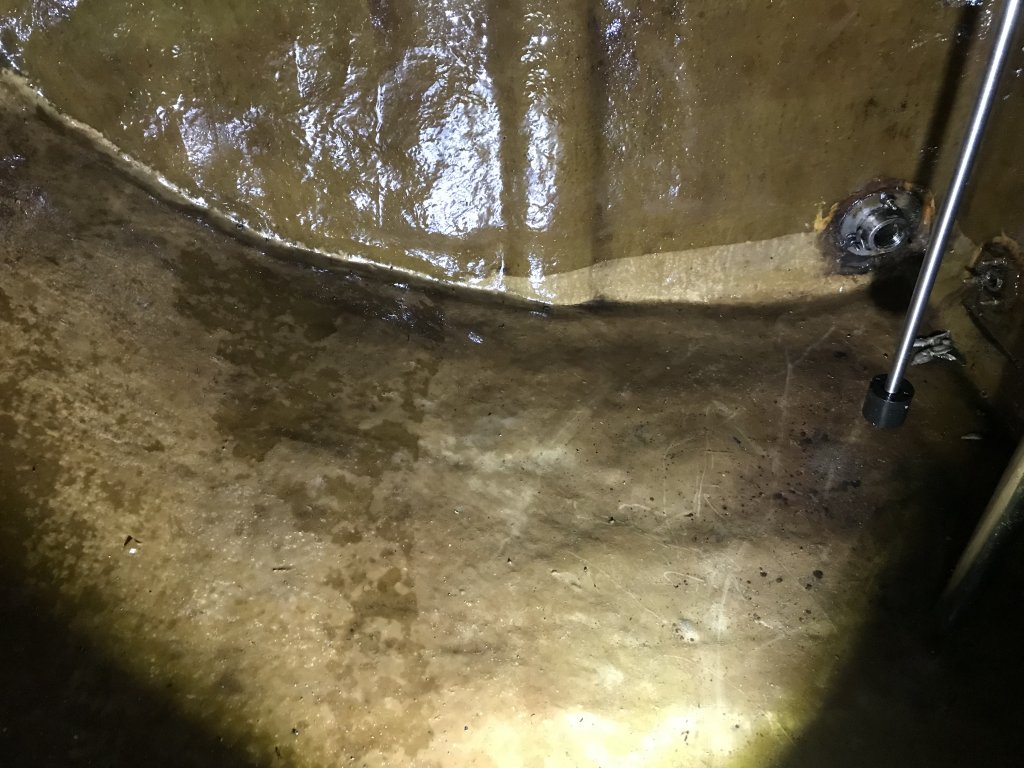

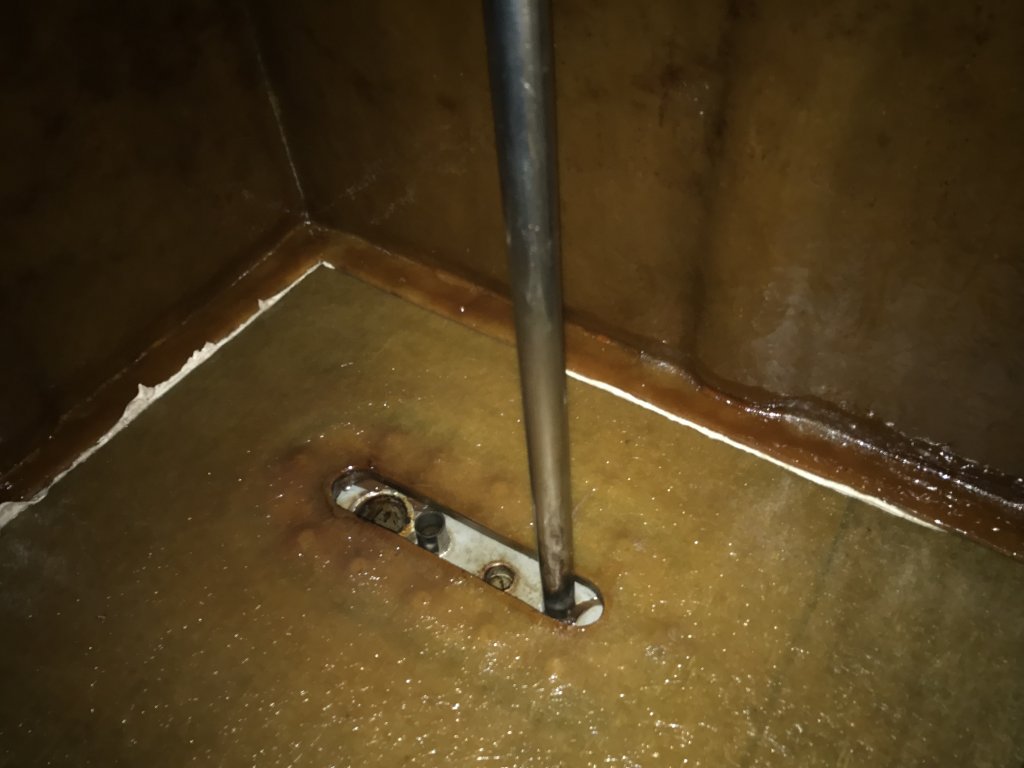

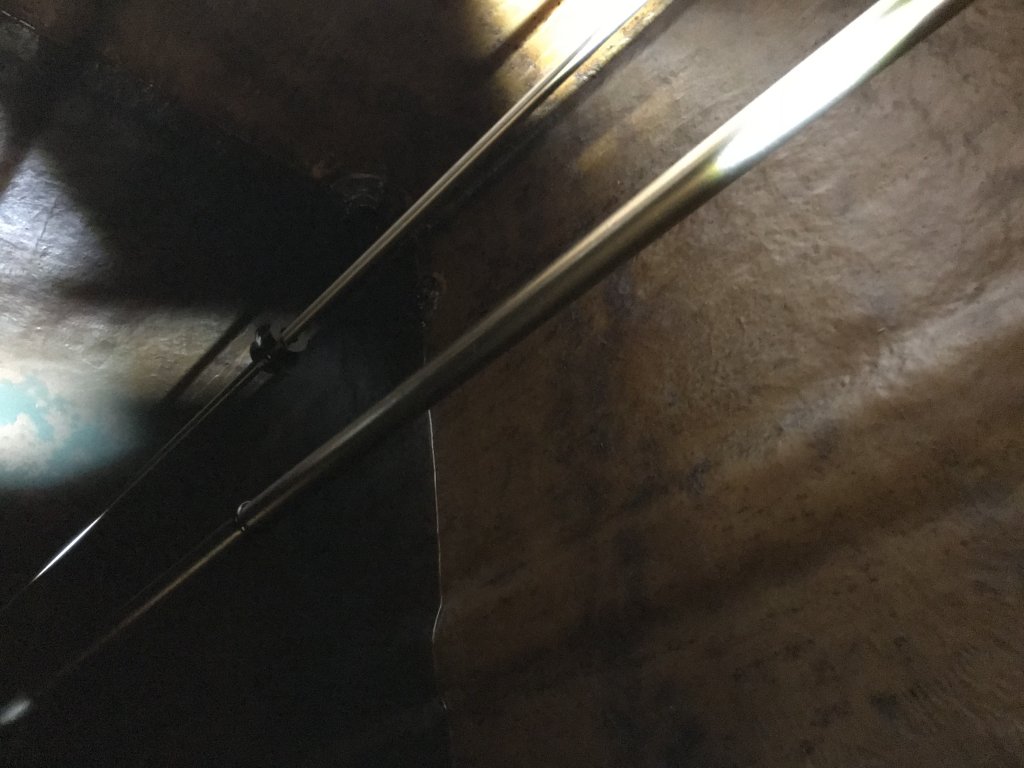

Forward compartment....see the fuel and ESI pick up tubes
Algae crap
A very clean aft compartment.....see the leftover 5200 from construction
Pieces of the gasket.....came from aft fuel and ESI hose connection port
Clean forward compartment
Port gasket back on

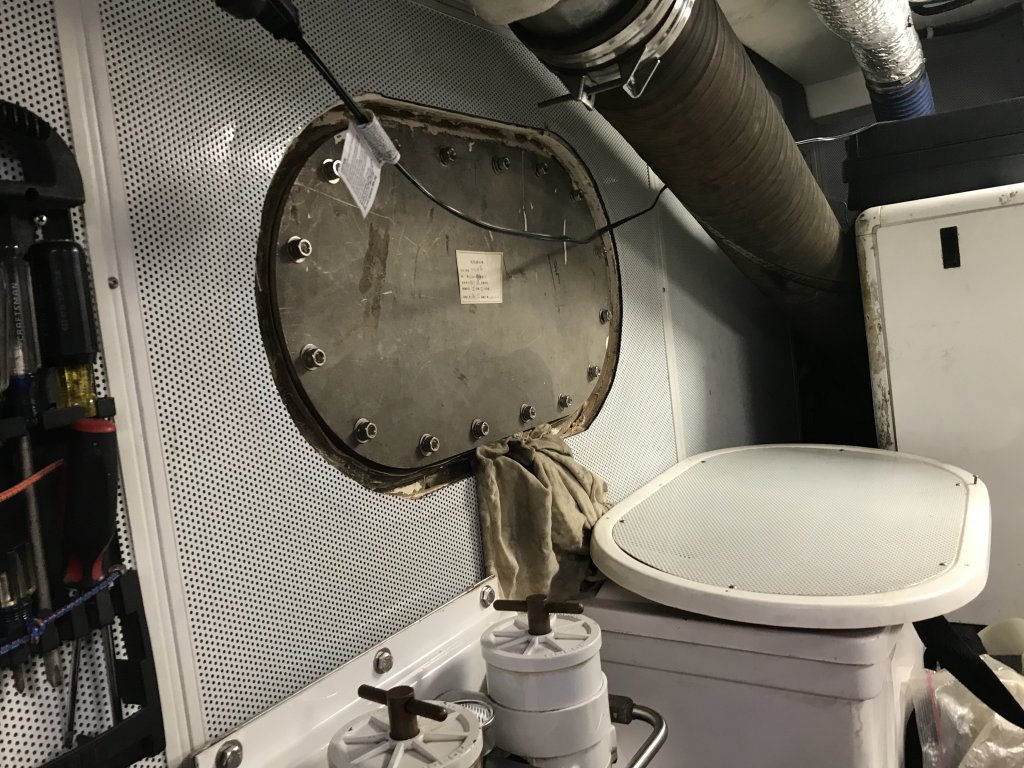

Starboard inspection port

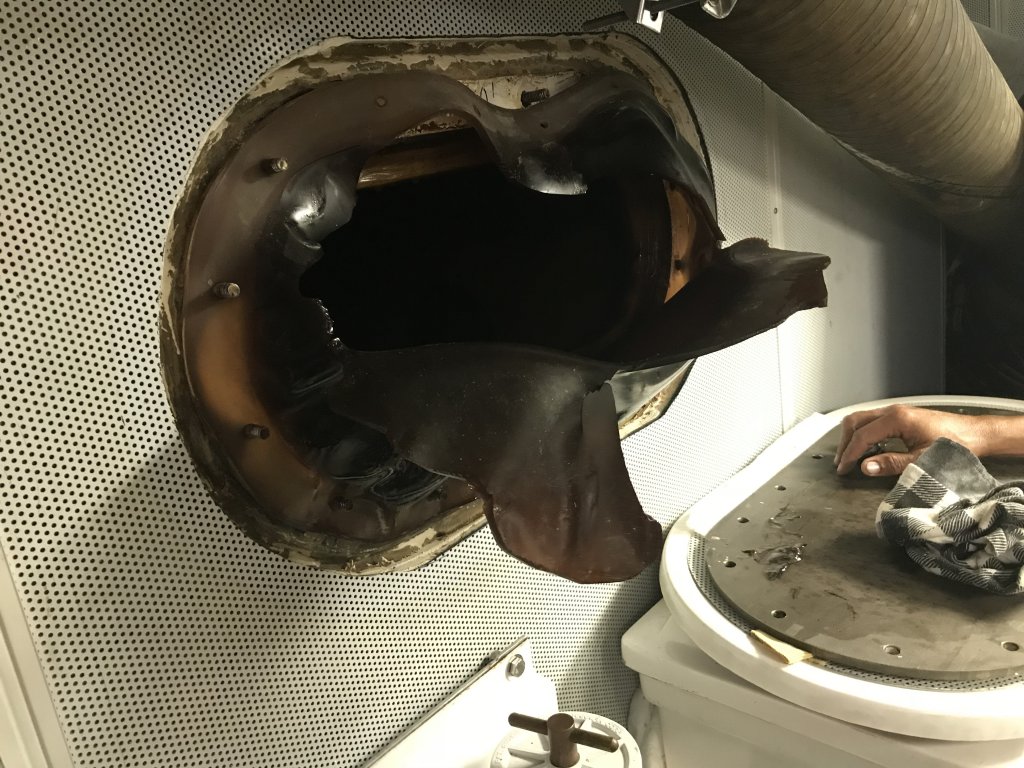

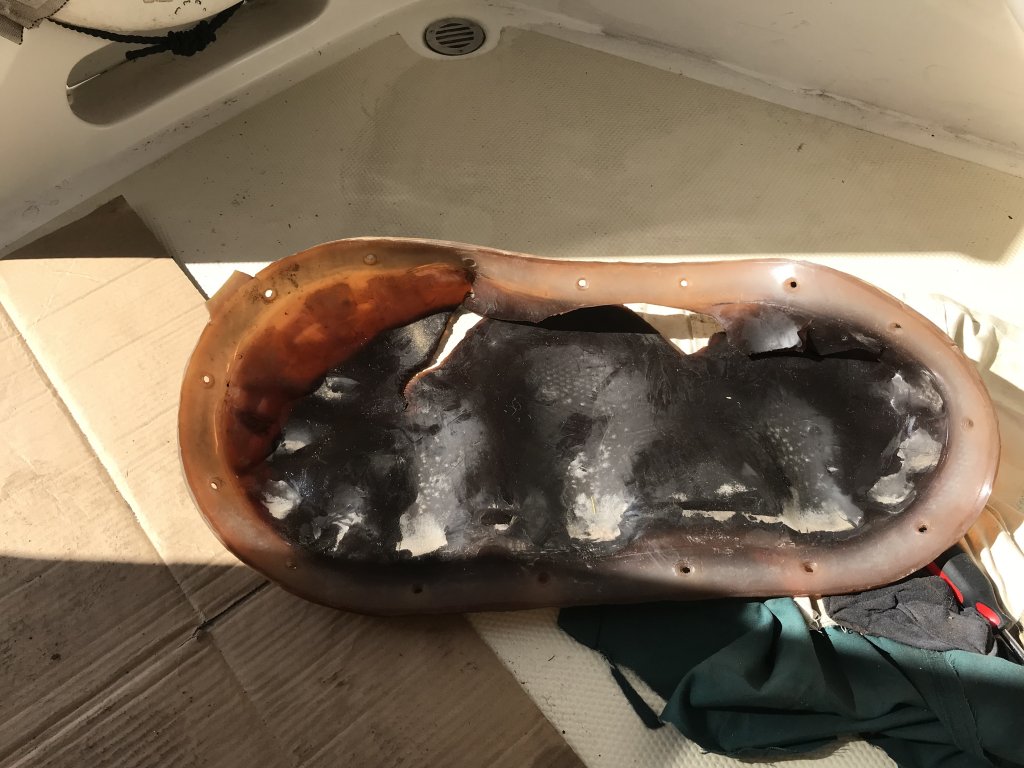

Oh no......gasket is all ripped apart....ugh!!!
Why do wives have such great memories....like, how did that fuel nozzle get in the tank...uh, John, don't you remember you dropped it in the Galapagos.....hmm, not really....well you DID!!!!
Not too dirty center compartment

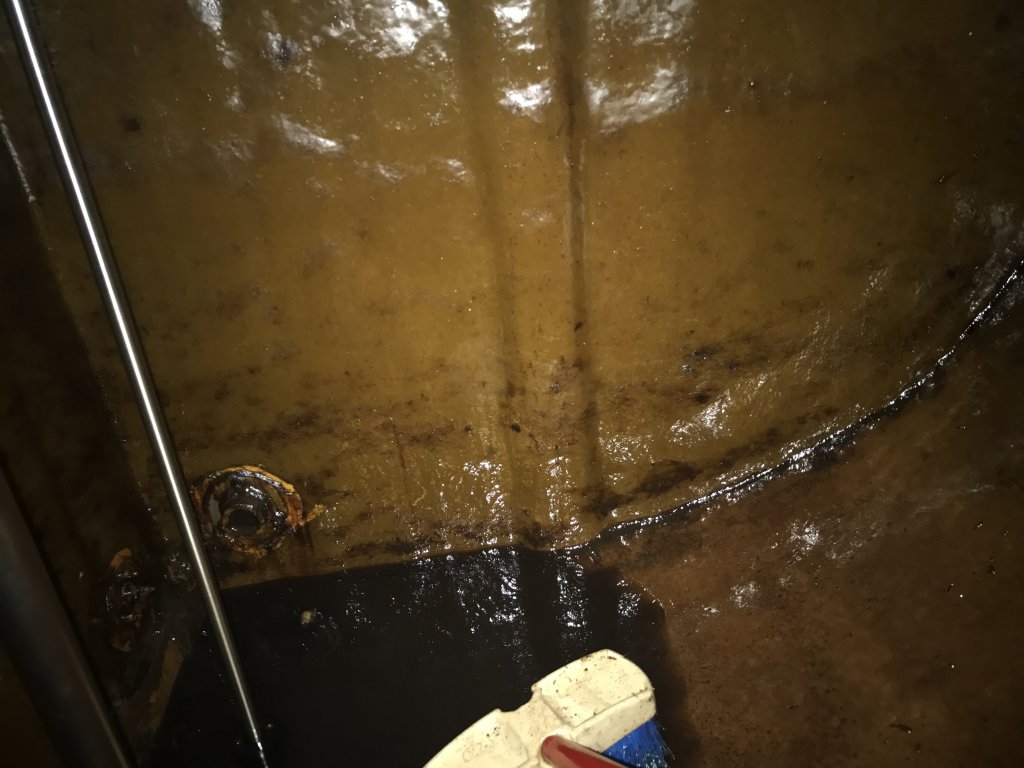

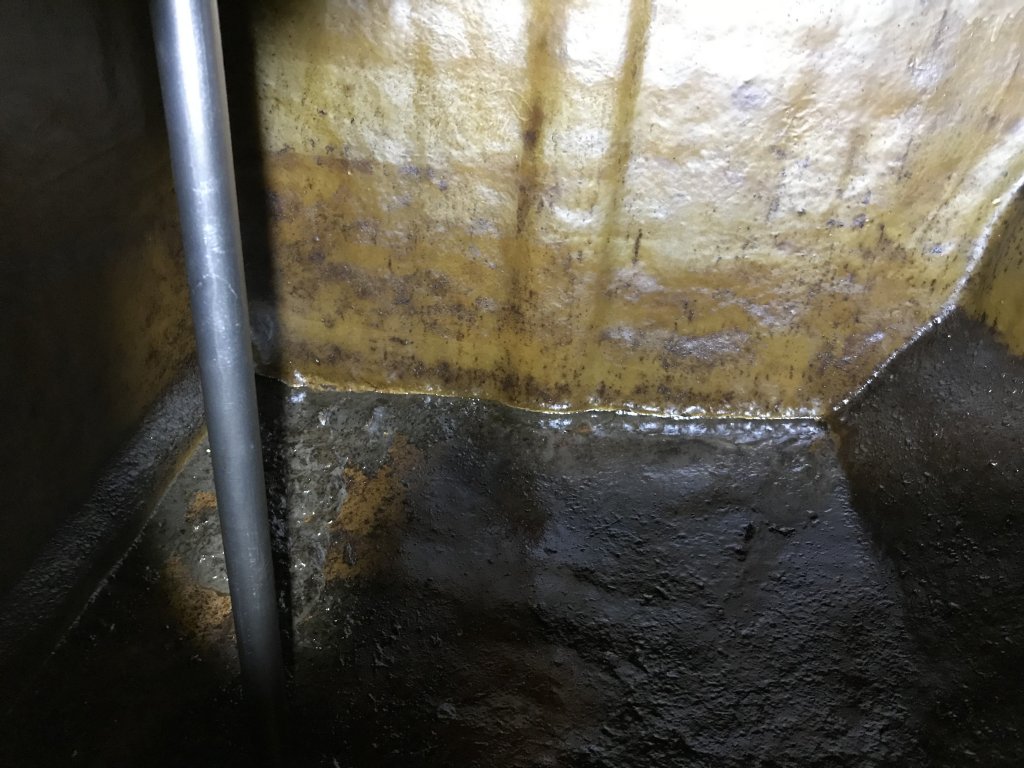

Ugh...very dirty aft compartment

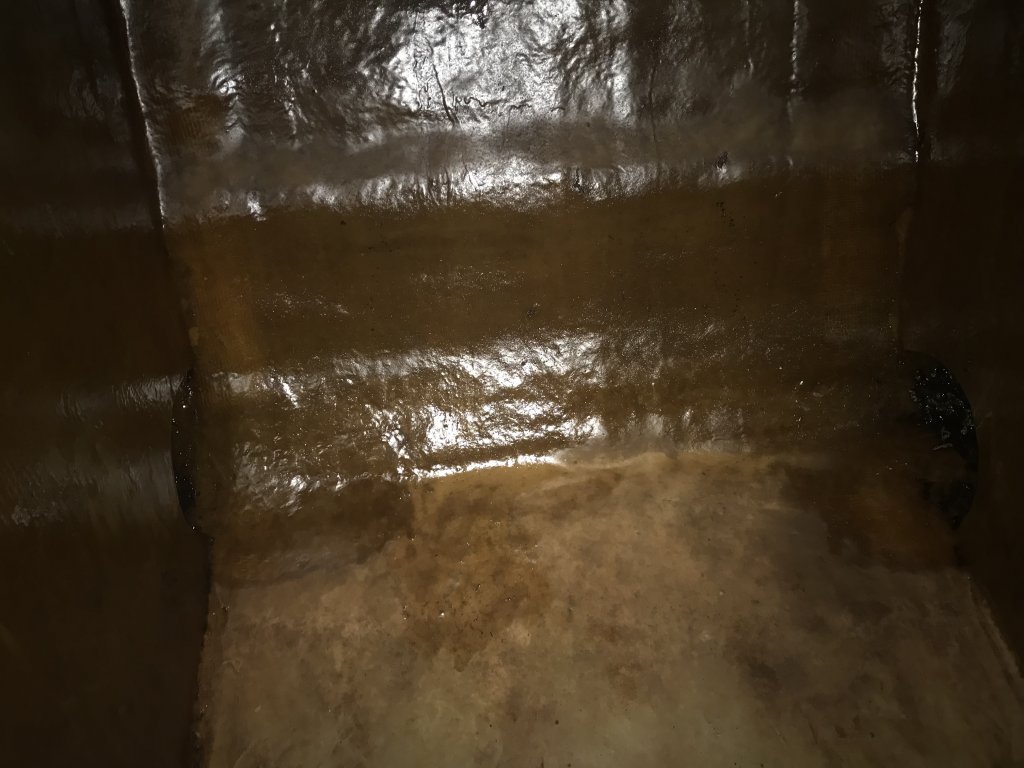

Really dirty forward compartment...we took out 64oz of algae crap from the starboard tank
Ripped gasket
Clean aft compartment
Clean forward compartment

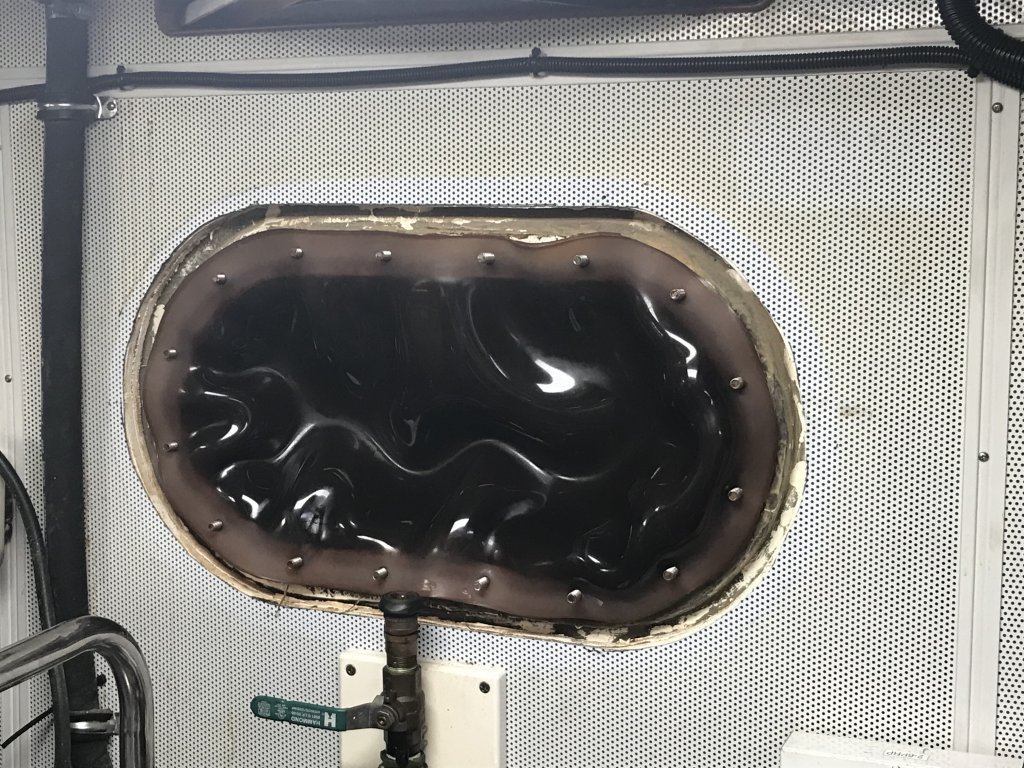

Francis watching the fill into the starboard compartment so we would know we would cover the new gasket and ensure it would not leak!!

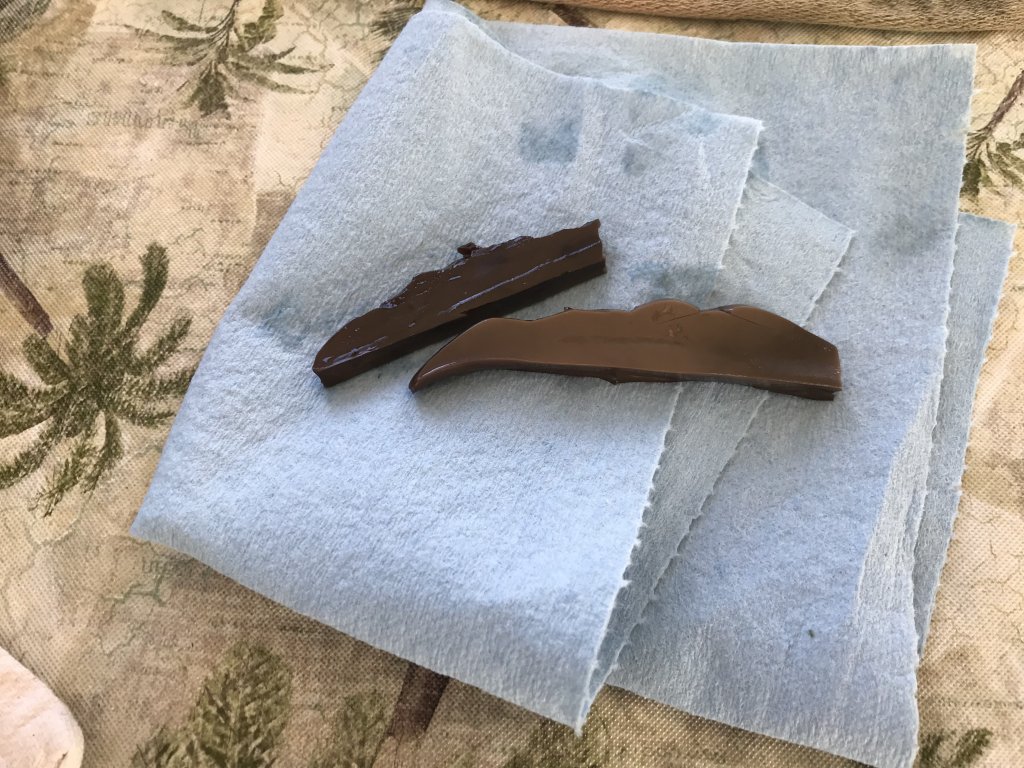

More gasket material
Aft compartment fuel line connection port at top of fuel tank.....we think a full gasket should be there and now most is gone.....we think that is where a lot of the gasket material came from on the port tank
Barnacle growth on port fin stabilizer....we thought this was the culprit as was the case in Panama
Good size oyster

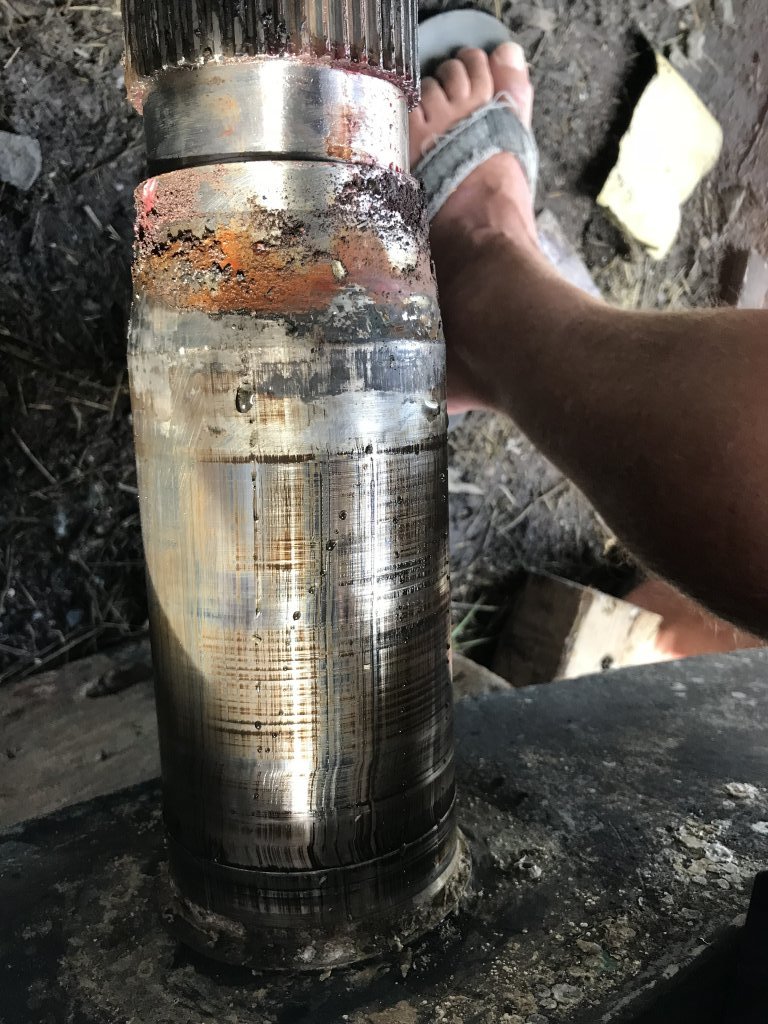

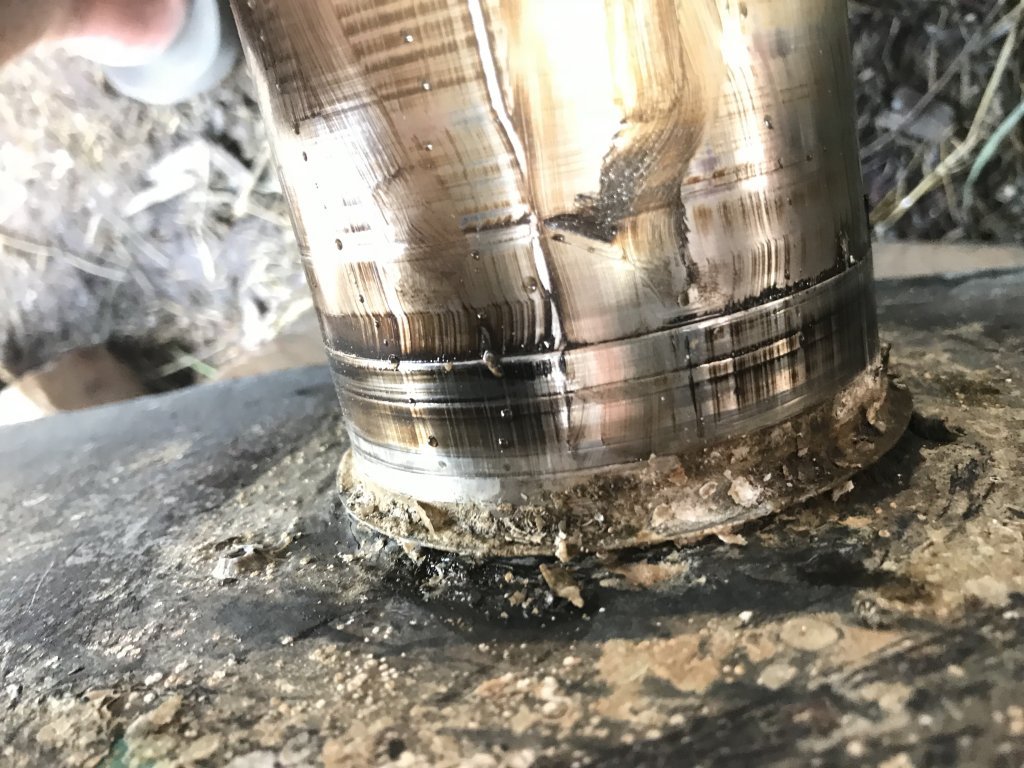

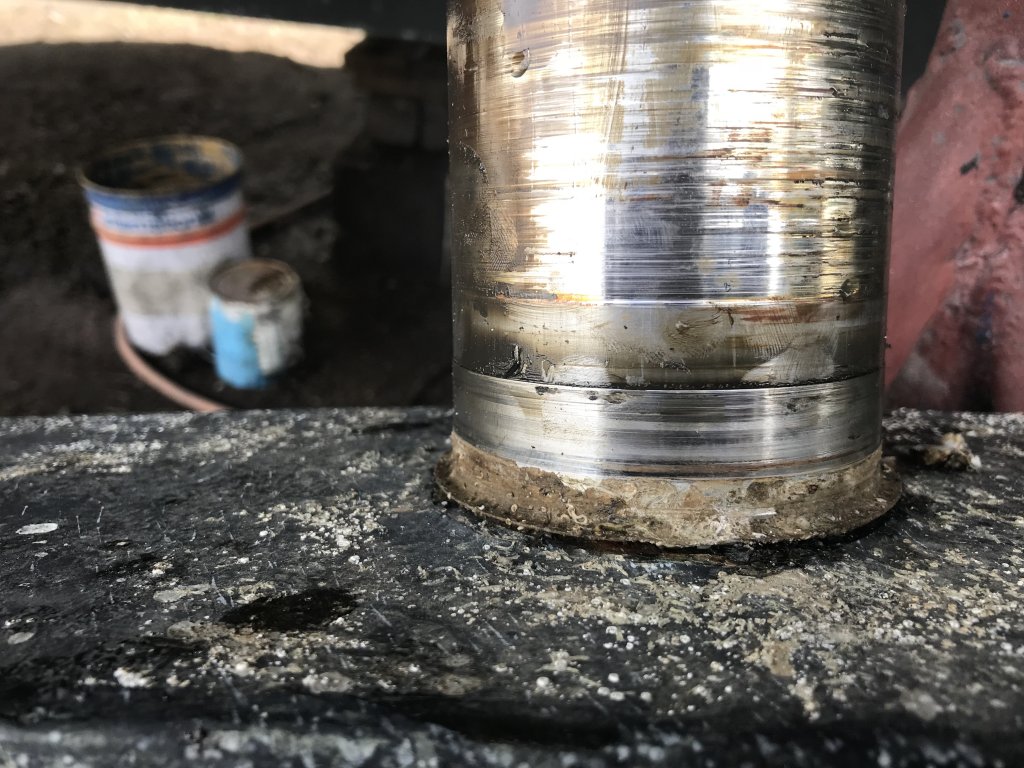

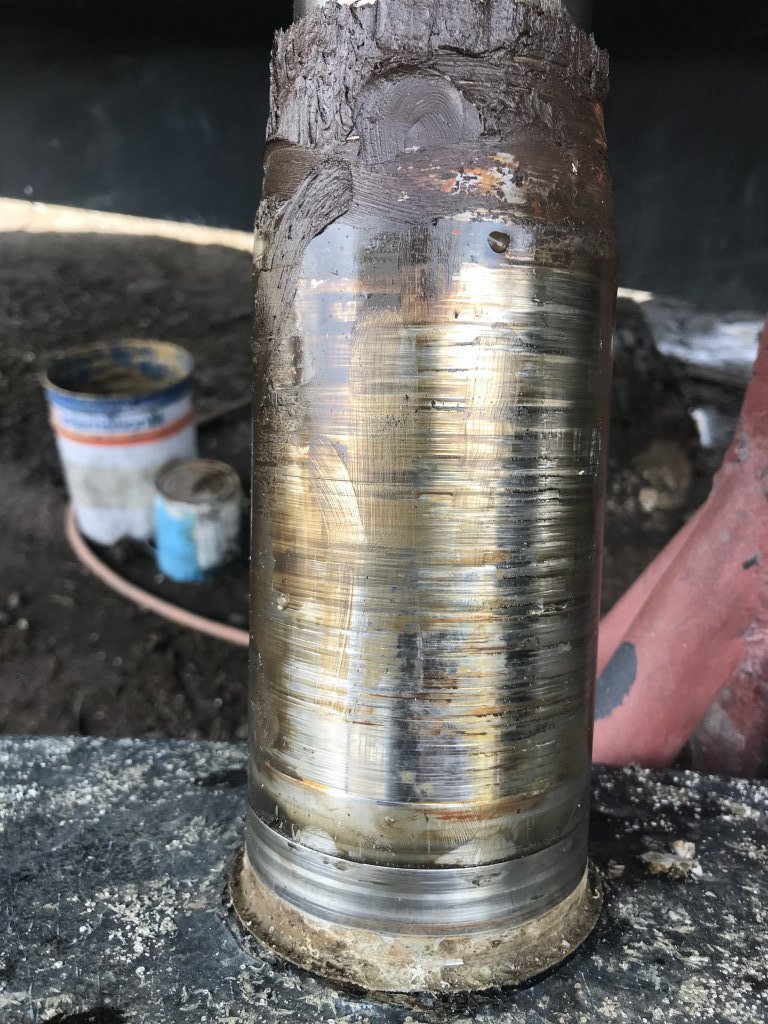

Port fin shaft.....not in good shape.....see all the grooves
Old Speedy sleeve installed in Australia
IMG_8216
Speedy sleeve....note barnacle growth

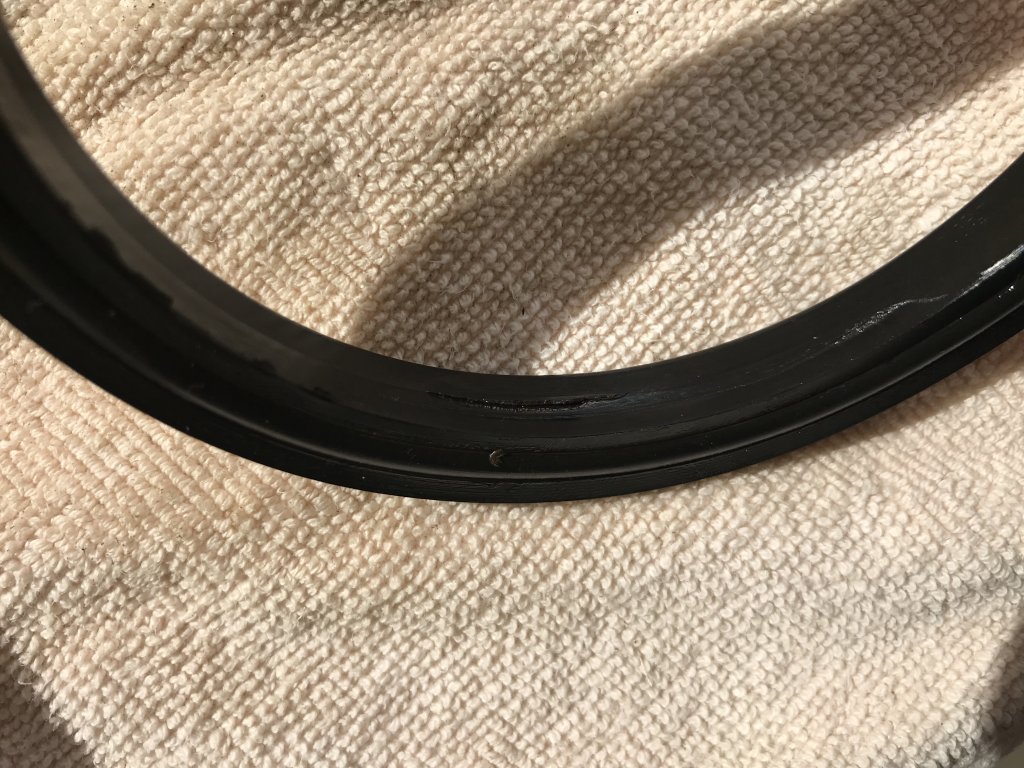

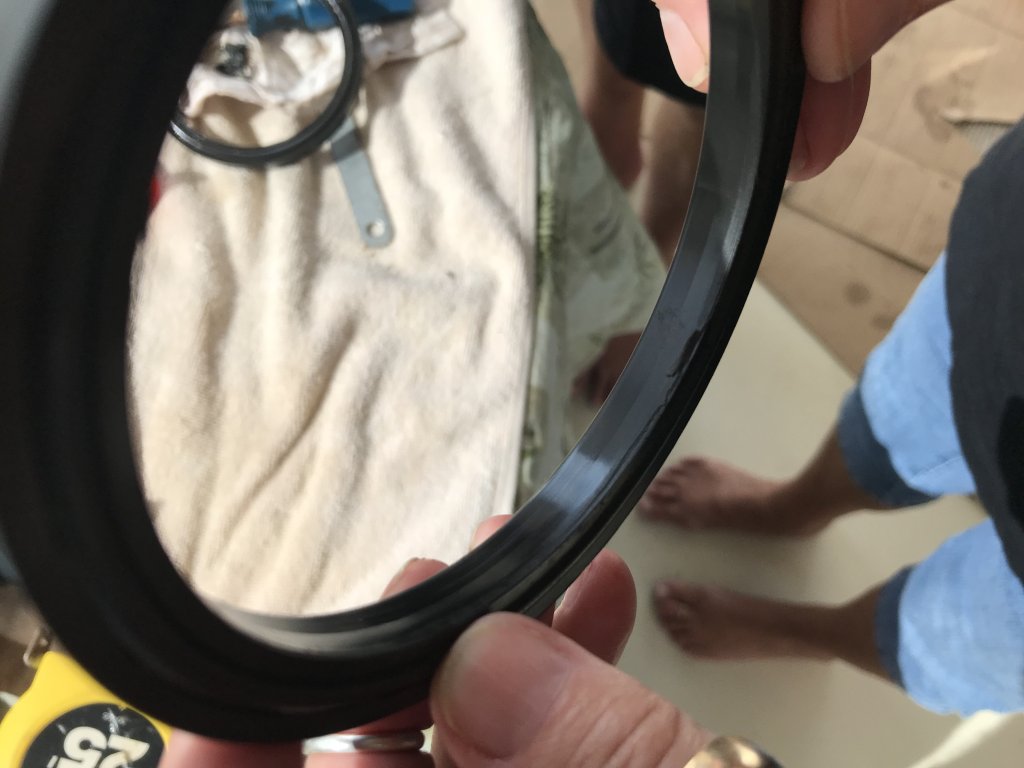

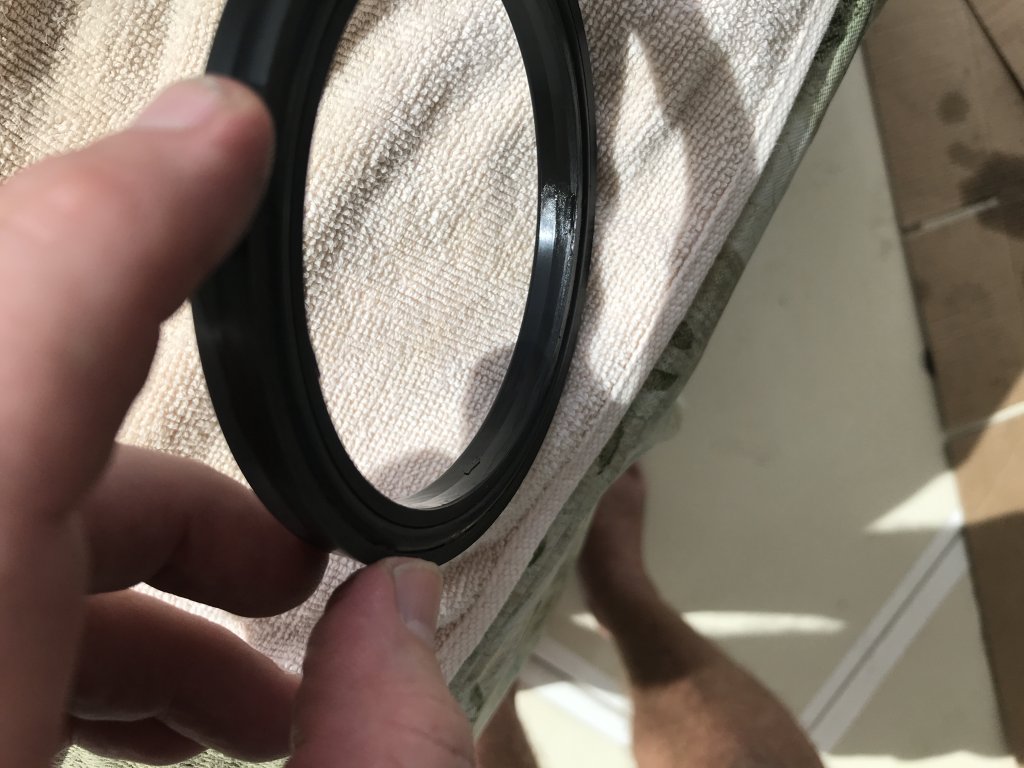

See nicks on the seals.....from catching the lip of the speedy sleeve when we installed in Australia
IMG_8225
IMG_8231

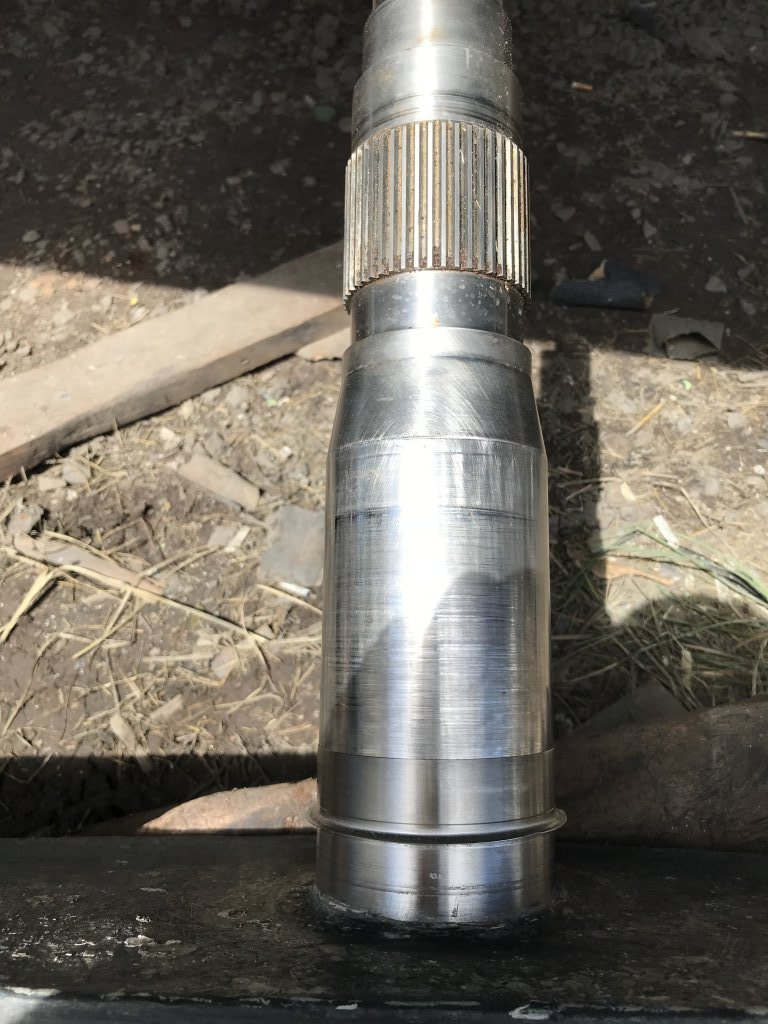

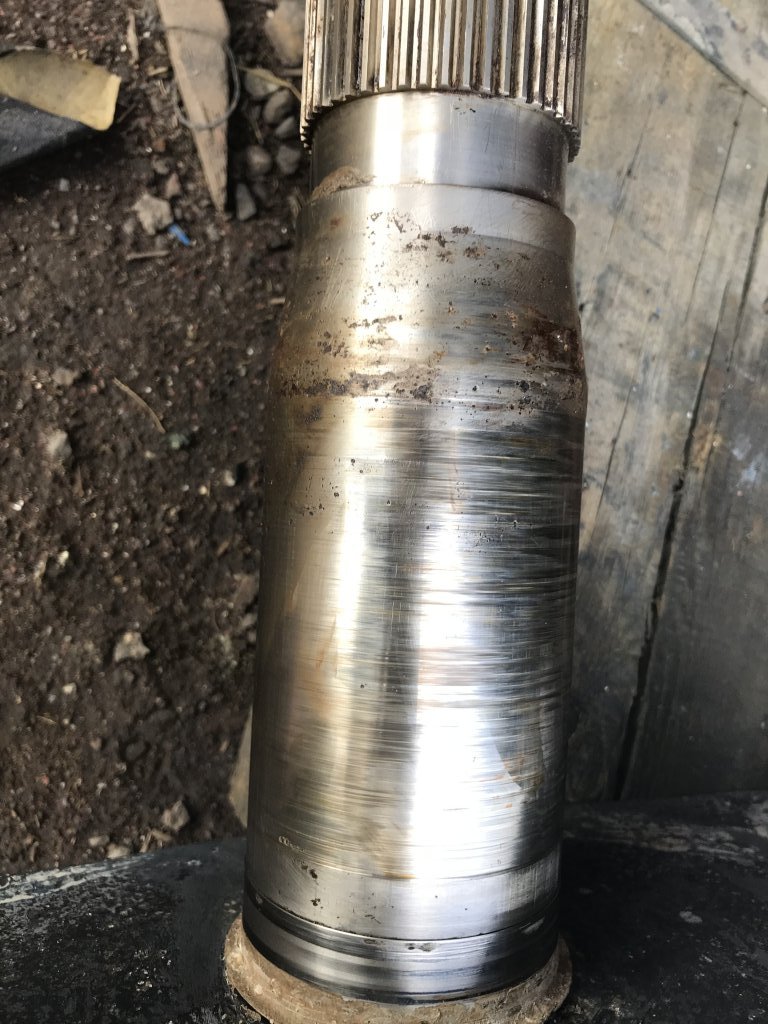

Cleaned up shaft....Steve filed away some of the rougher grooves!!

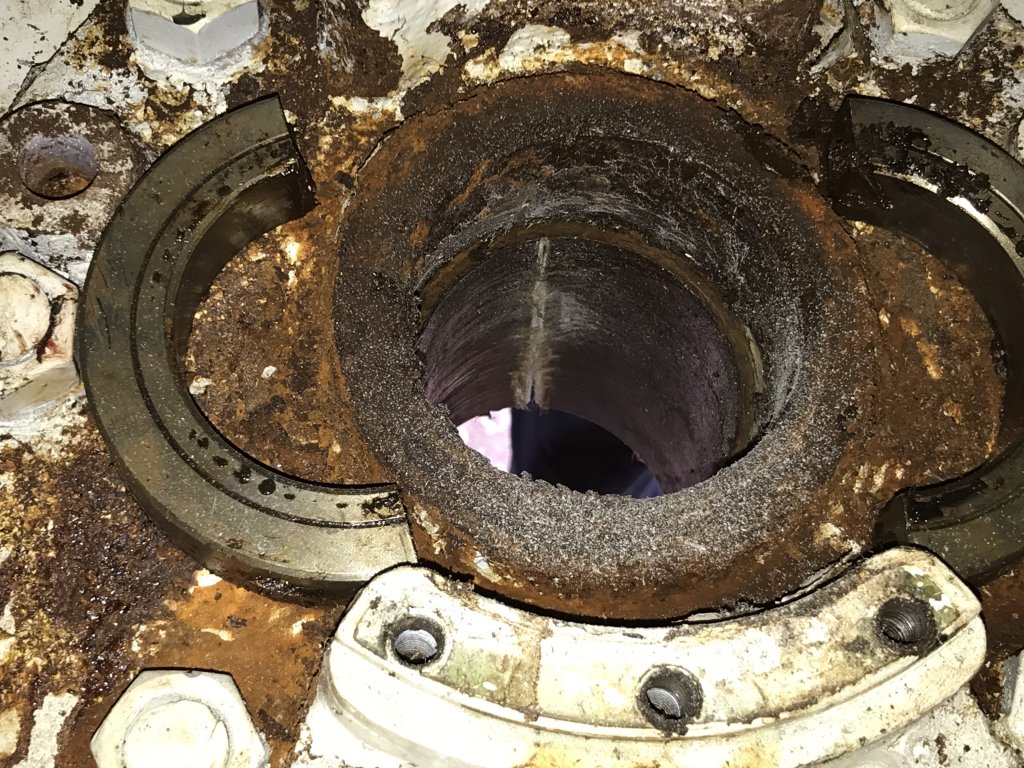

Duralon teflon bearing in shaft hole....note the grooves...the cut is from Steve cutting the bearing out

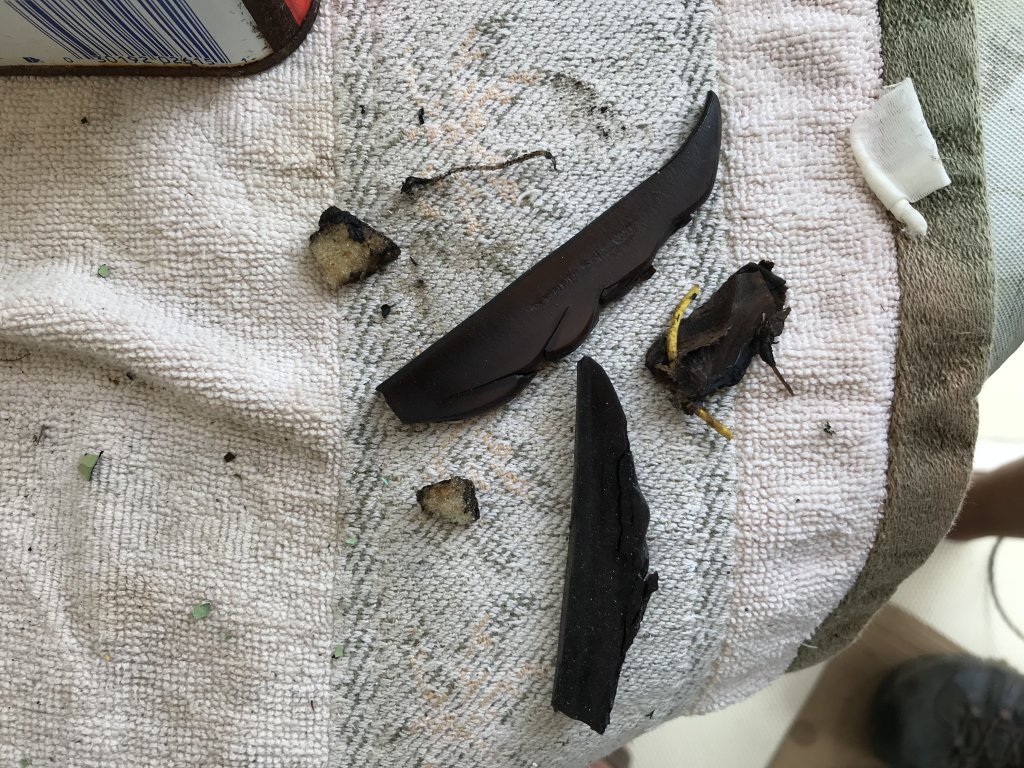

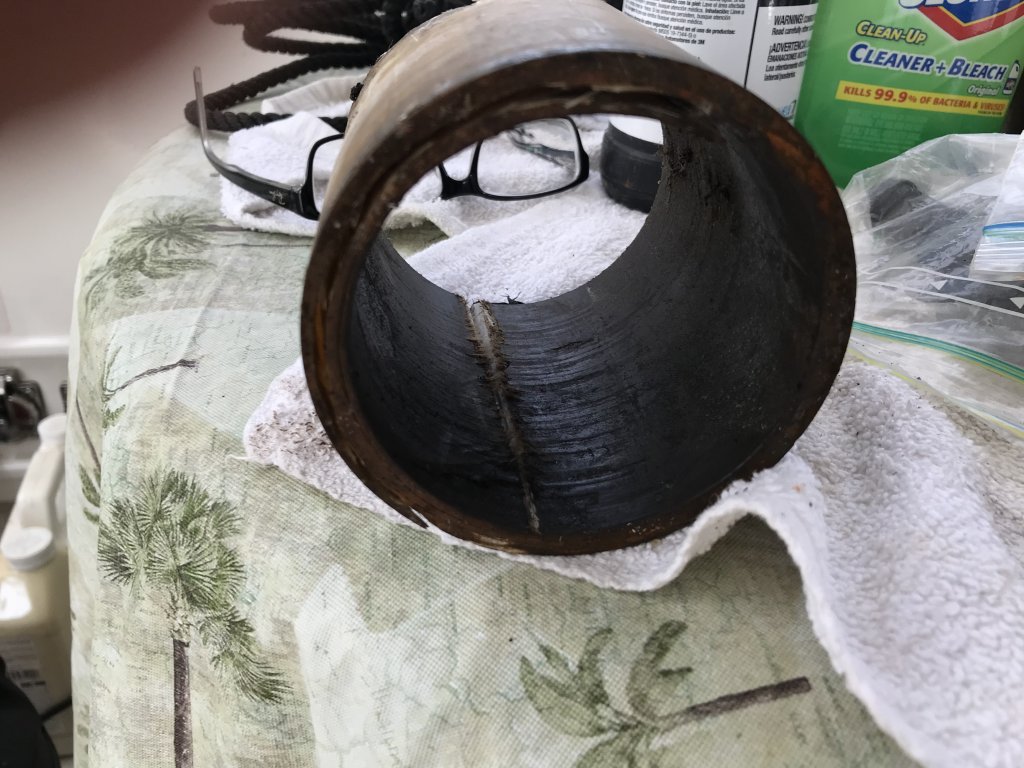

Port Duralon teflon bearing.....in very bad condition...ugh!!

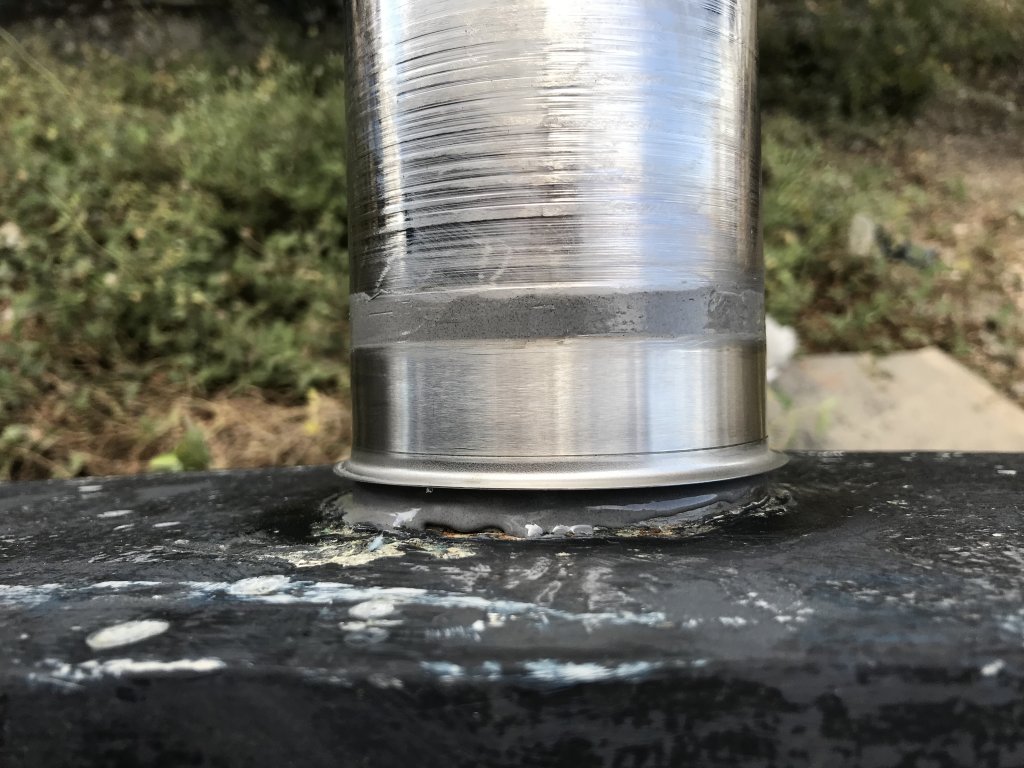

IMG_8288
Speedy sleeve going on starboard fin

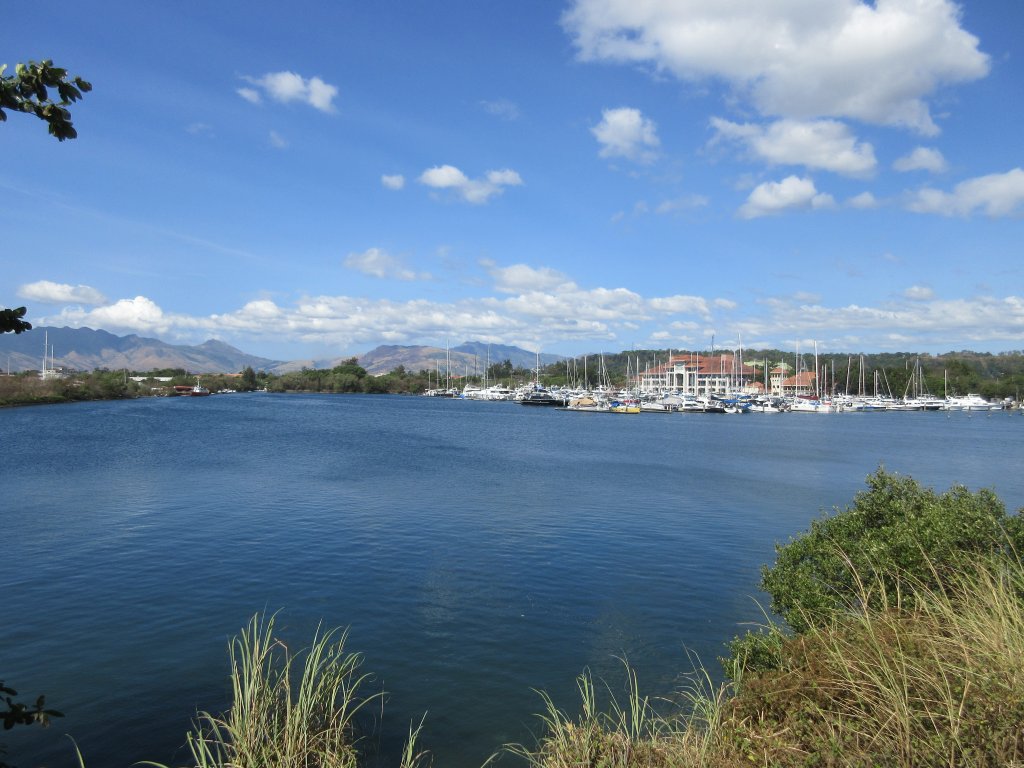

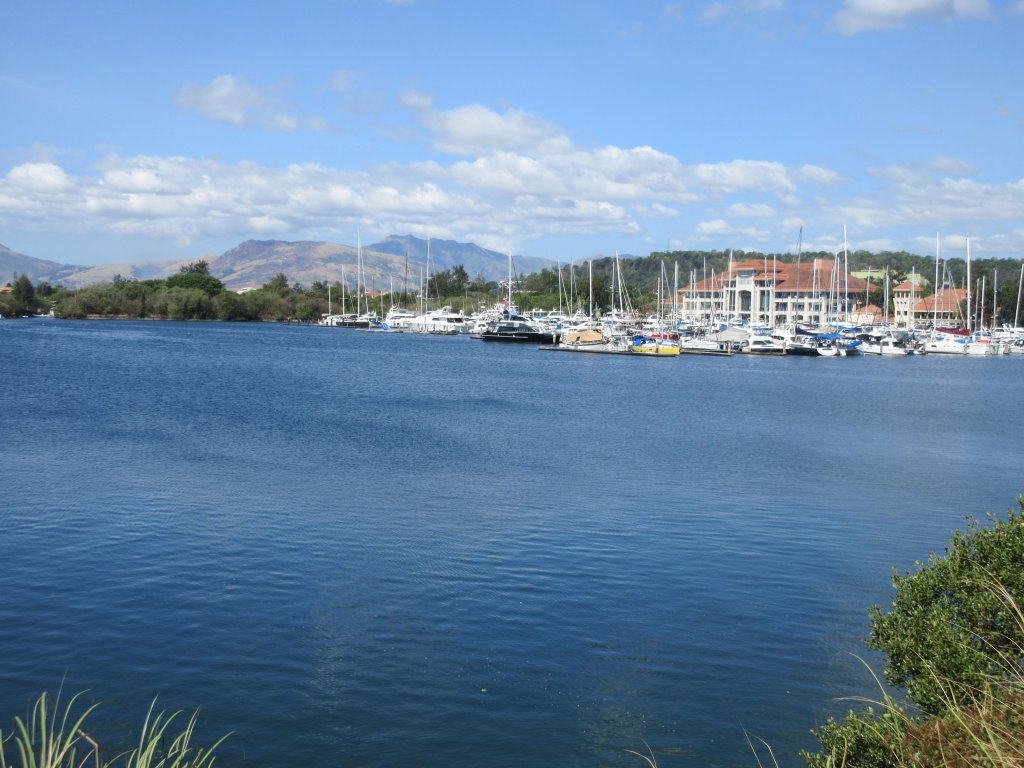

View of the marina and Yacht Club from boatyard
Our hotel was in the big building.....about a 10 minute walk!!!

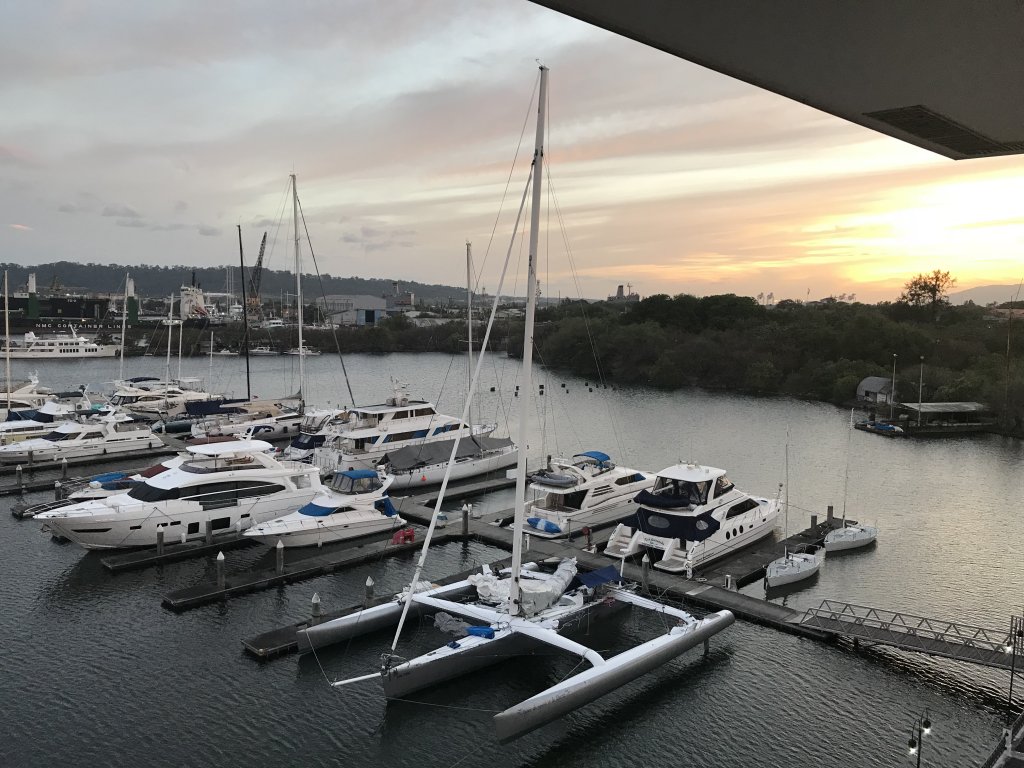

View from our berth in the marina

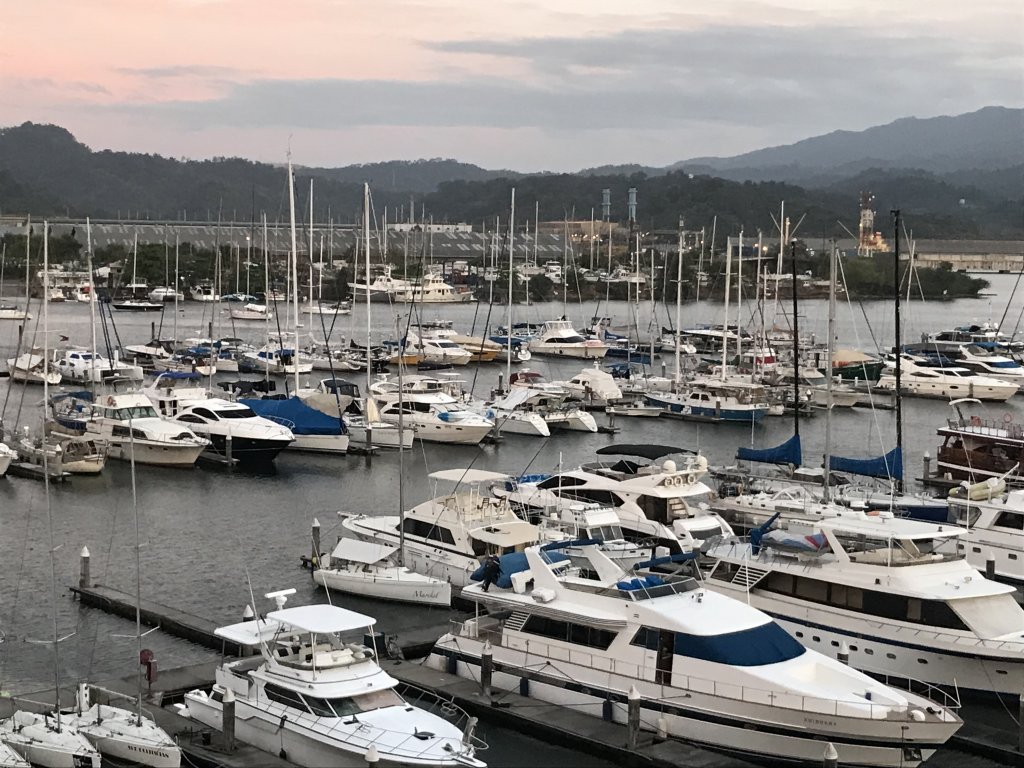

View looking out from our balcony from the hotel room
That is the boatyard in the background

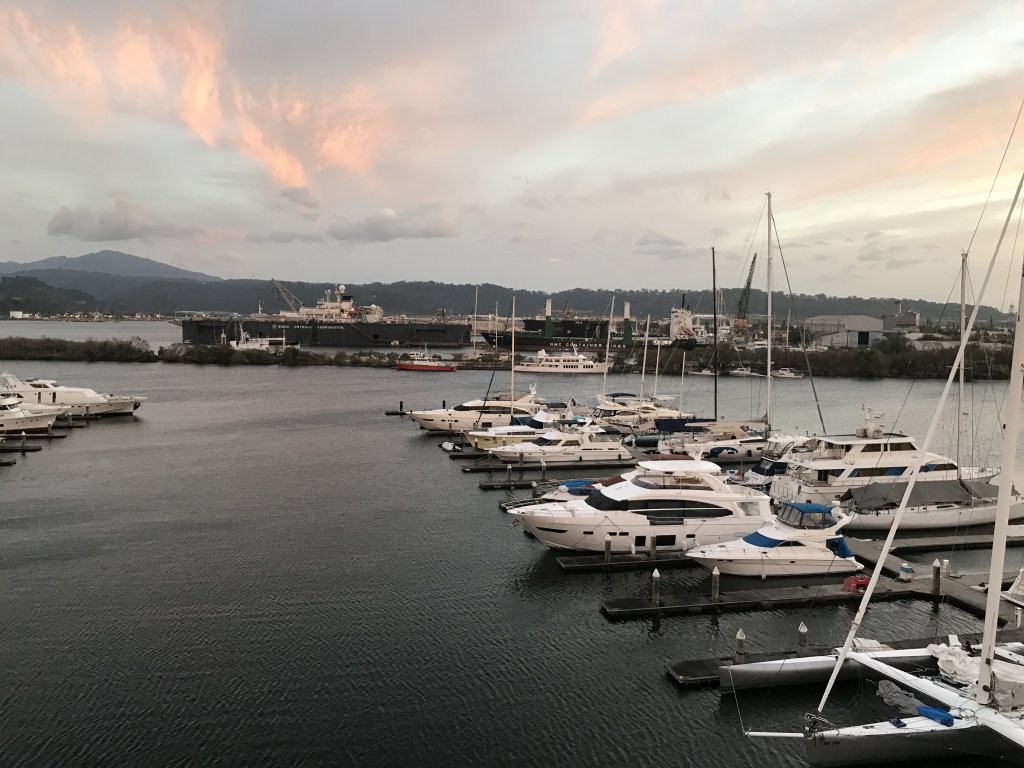

IMG_8240

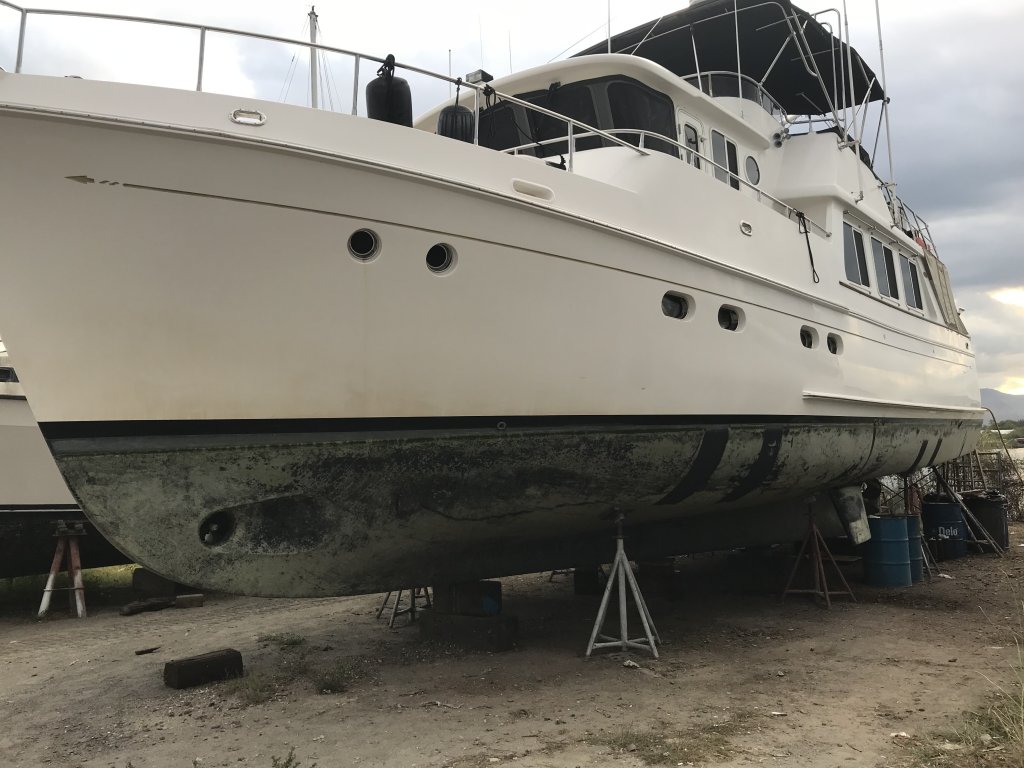

This is what the bottom paint looks like after it dries....that is all algae.....but a quick wash and sanding it easily comes off....but, wow, the stink....ugh!!!

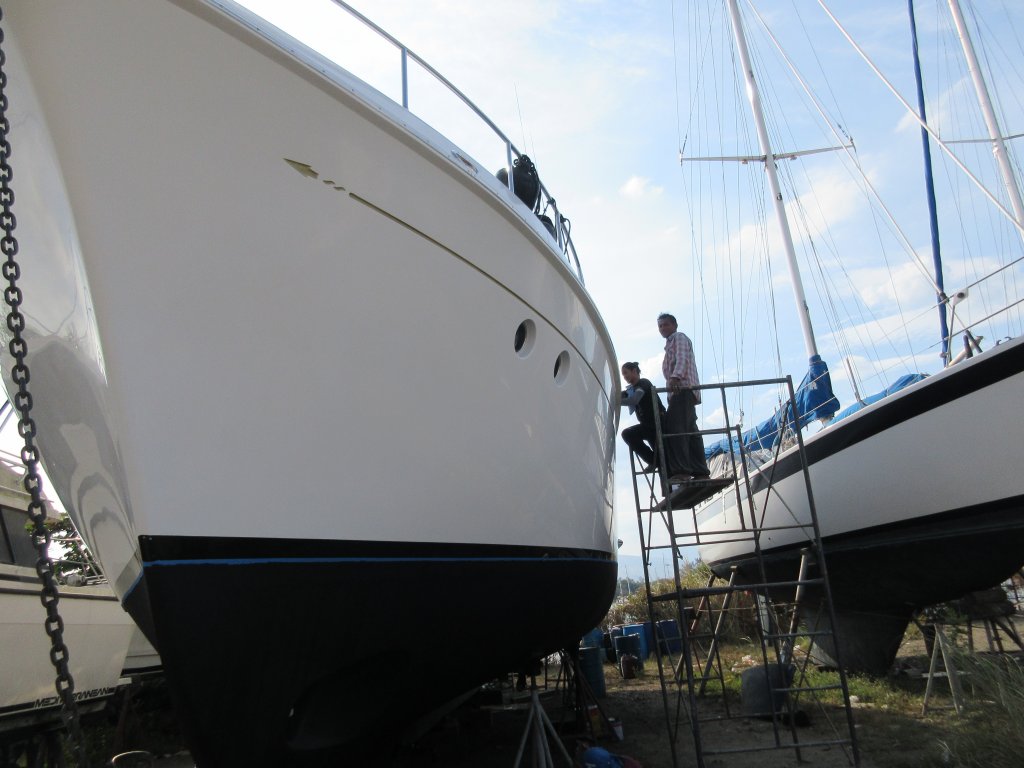

The detail guys waxing the hull!!!

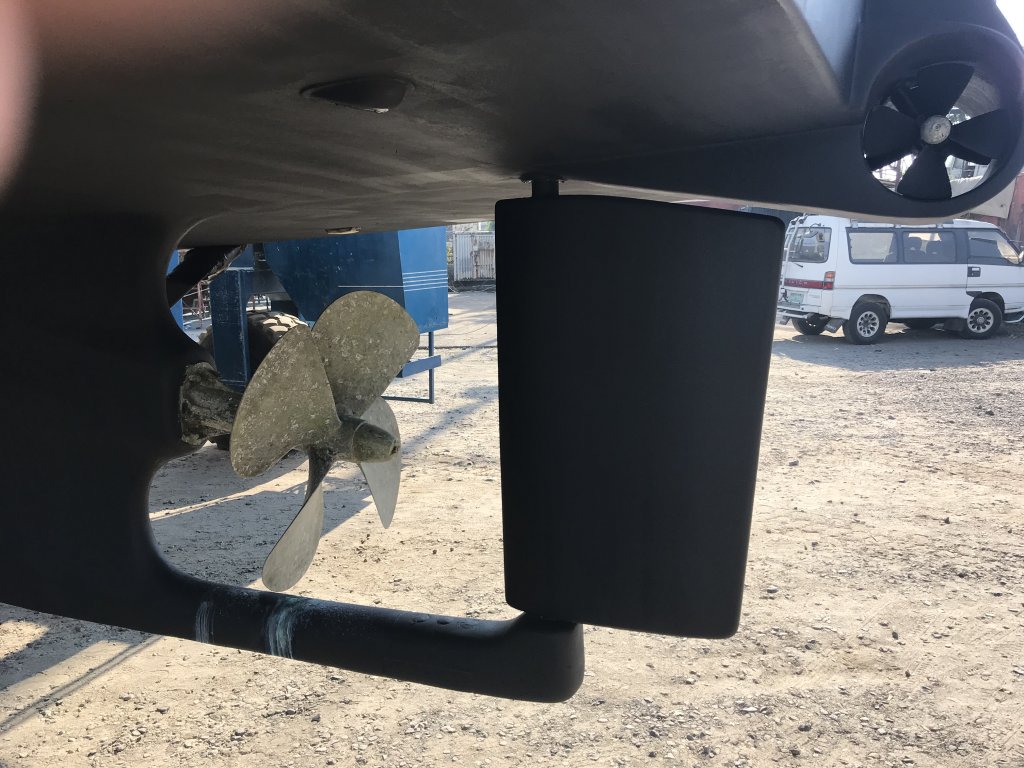

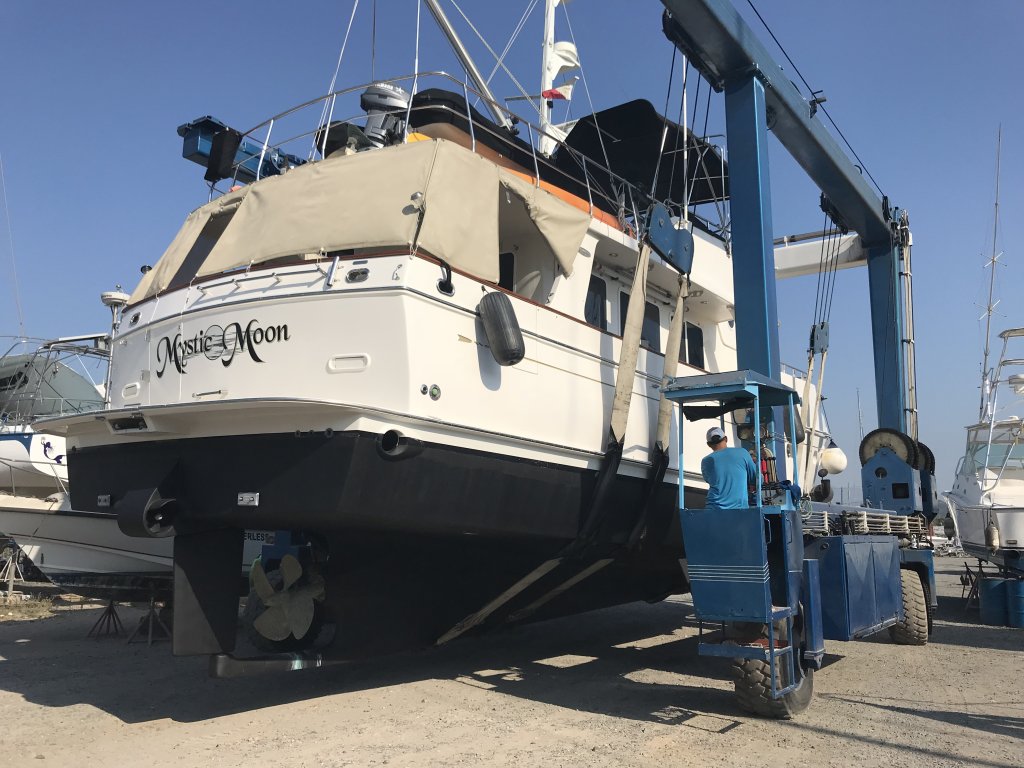

All done and ready to splash.....Yanmar get home engine prop.....note the shaft has plenty of Prop Speed on it but the Yanmar and Cummins props have just a little left
Rudder and shoe look good!!

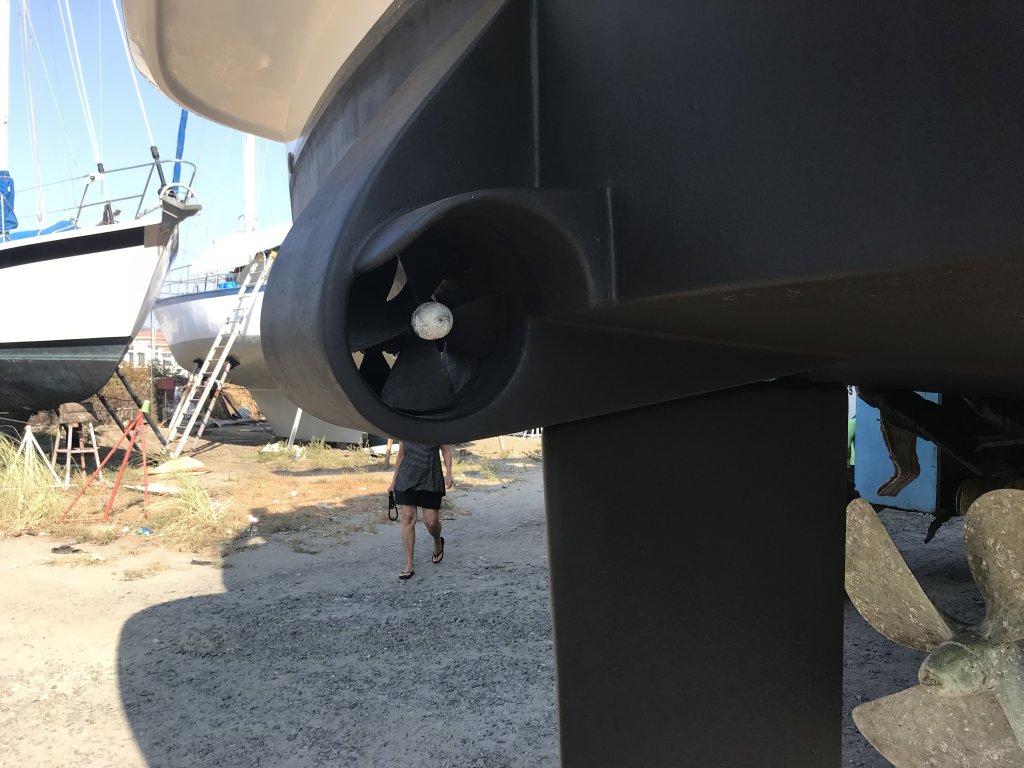

Stern thruster looks good

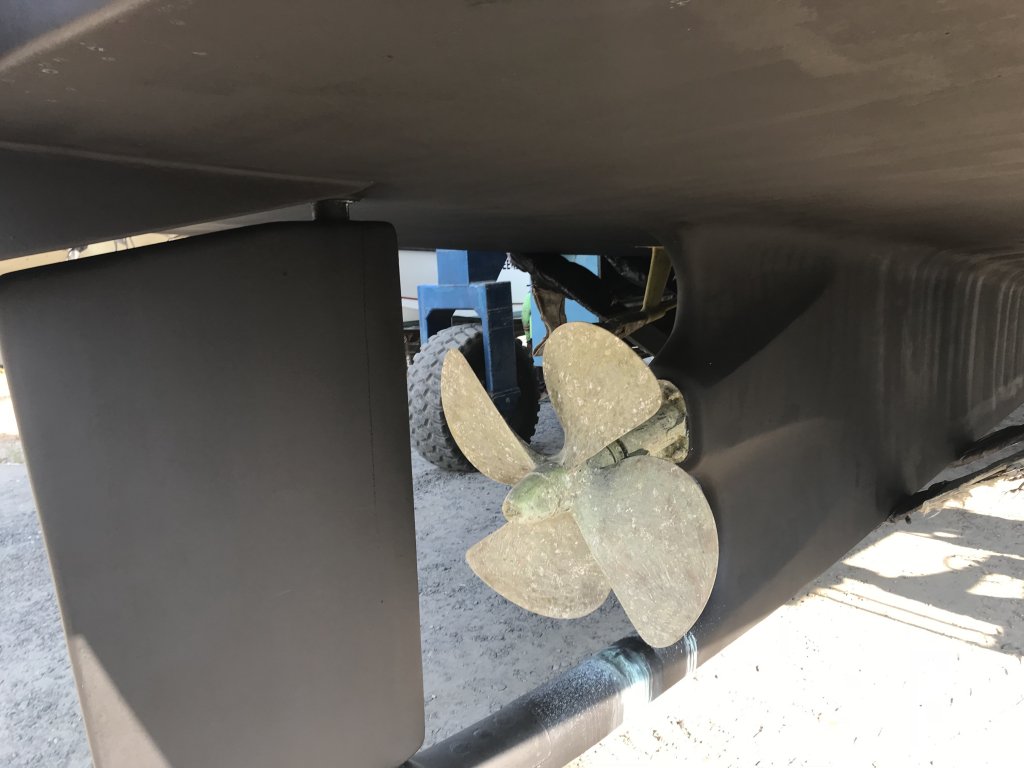

IMG_0670
Bottom paint looks good!!

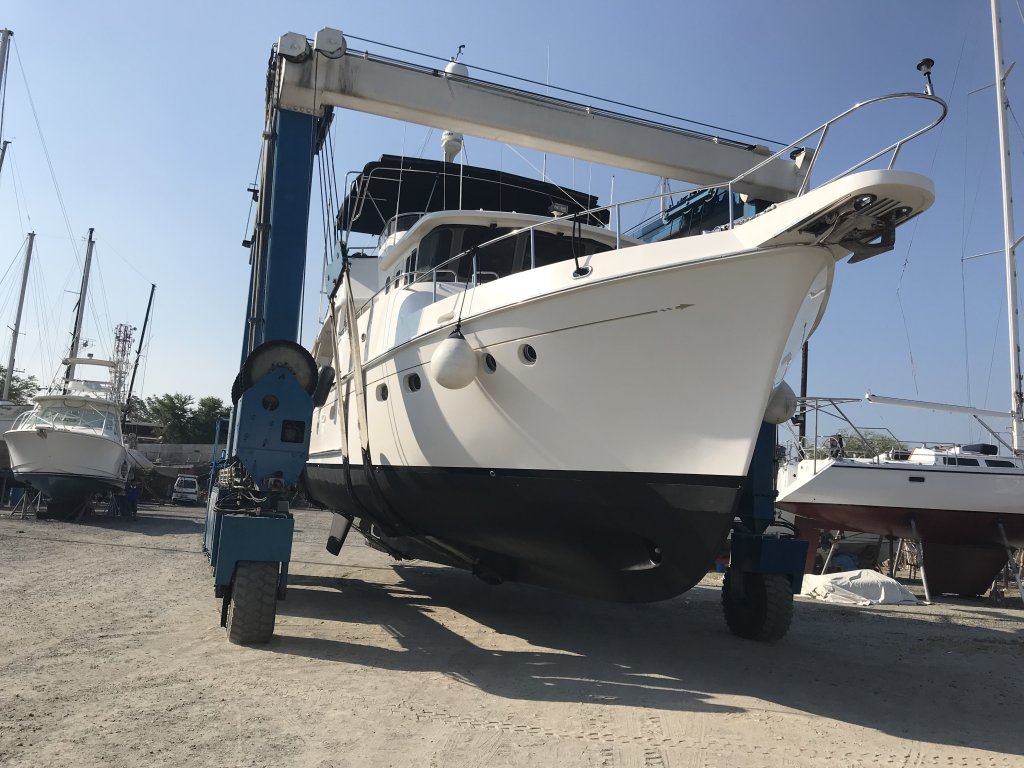

IMG_0678

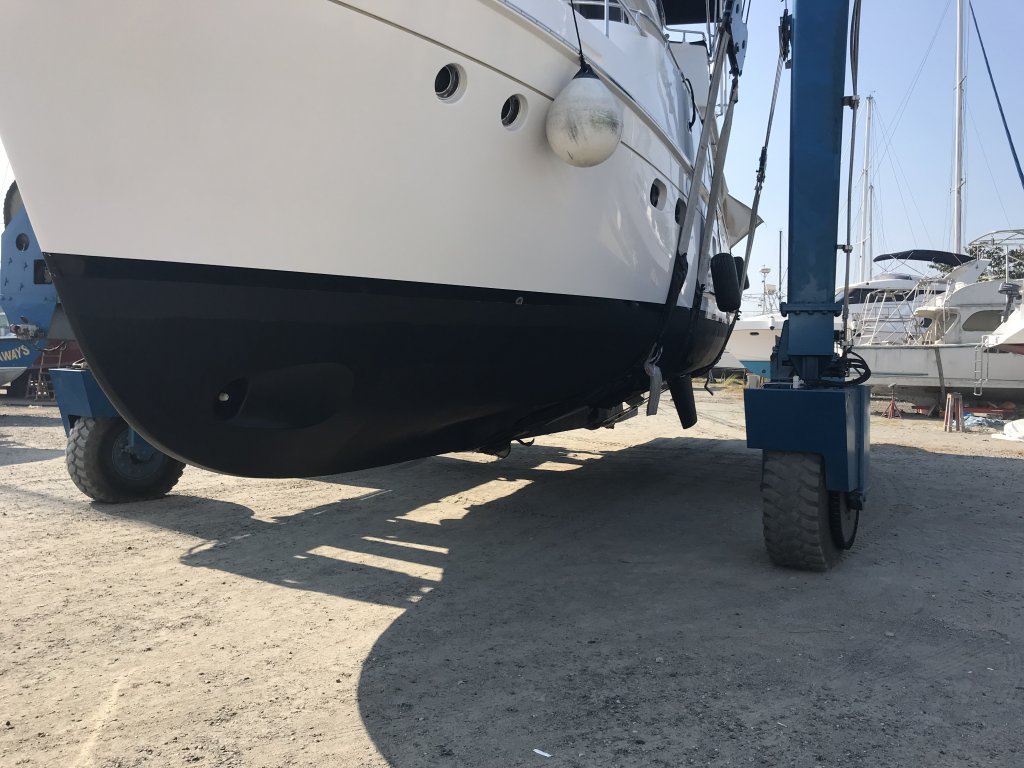

IMG_0679

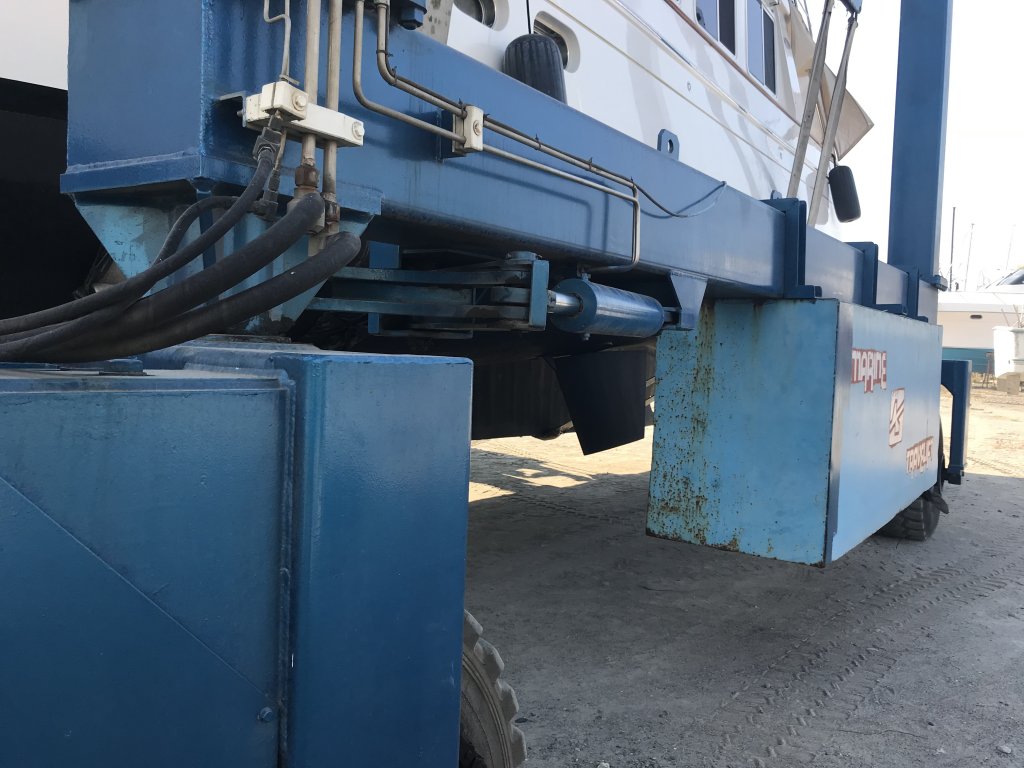

IMG_0680

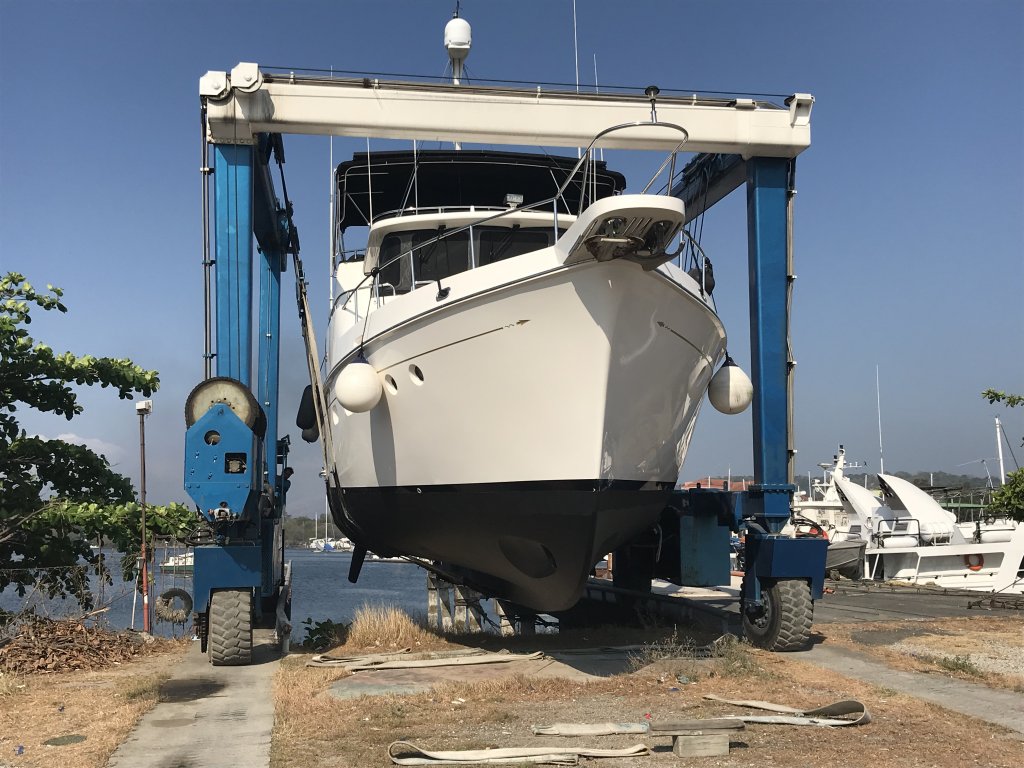

IMG_0689
That is Steve on the right making sure all is good!!

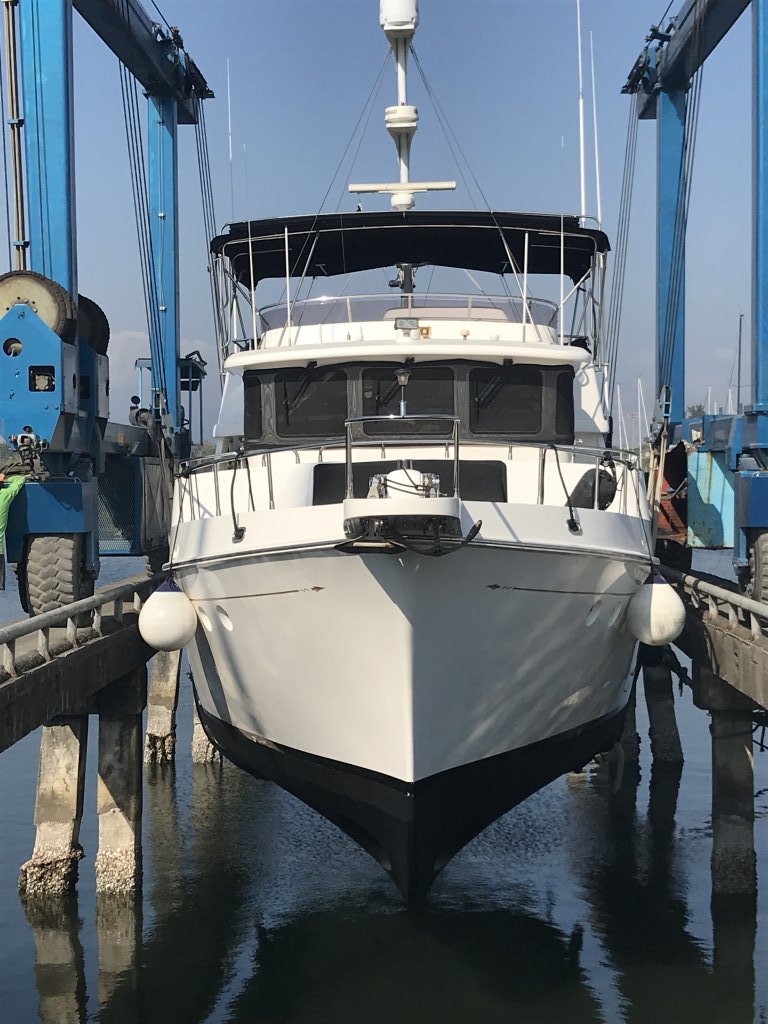

Back in the water and all is good!!!
